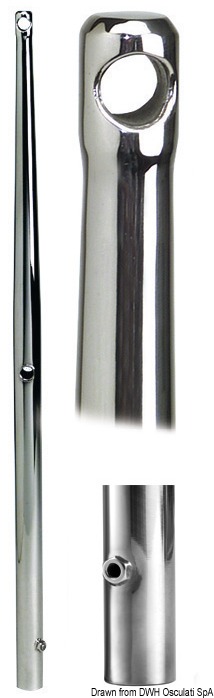

Osculati AISI 316 Stainless Steel Stanchion for Male Bases, Ø25–30 mm, 625–752 mm

ID 1396336

$ 44.68

1-2 weeks delivery time

Diameter, mm:

25x1.5
30x2

Length, mm:

625 ORC Compliant
625
627
752

The Osculati stanchion for male bases is made of mirror-polished AISI 316 stainless steel and is mounted into the base with a screw that allows the stanchion to rotate for alignment with the stringer. Four versions are available with Ø25x1.5 mm or Ø30x2 mm tube sections and A dimensions from 625 to 752 mm. Recommended base plates vary by model, and article 41.176.12 is an ORC-complying version.

Description
Ask a Question

Osculati AISI 316 Stainless Steel Stanchion for Male Bases, Ø25–30 mm, 625–752 mm

The Osculati stanchion range for male bases is manufactured from mirror-polished AISI 316 stainless steel. The stanchion is mounted into the base with a screw that allows it to rotate on the base for alignment with the stringer.

The range includes four versions with Ø25x1.5 mm or Ø30x2 mm tube sections. Individual models differ in their A, B and C dimensions, F1 and F2 hole diameters, and recommended base plates. Article 41.176.12 is the ORC-complying version.

Available Versions

Osculati Article	Tube Size	A	B	C	F1 Ø	F2 Ø	Recommended Base Plate
41.176.11	25x1.5 mm	625 mm	615 mm	300 mm	10.4 mm	12.7 mm	41.173.25; 41.173.60
41.176.12*	25x1.5 mm	625 mm	615 mm	240 mm	10.4 mm	12.7 mm	41.173.25; 41.173.60
41.177.01	30x2 mm	627 mm	615 mm	320 mm	11.7 mm	12.7 mm	41.173.30
41.177.02	30x2 mm	752 mm	740 mm	440 mm	11.7 mm	10.8 mm	41.173.30

* 41.176.12: ORC-complying model.

Technical Features

Product type: Stanchion for male bases
Material: AISI 316 stainless steel
Finish: Mirror-polished
Available tube sizes: Ø25x1.5 mm and Ø30x2 mm
Mounting: Into the base with a screw
Adjustment: Stanchion can rotate on the base for alignment with the stringer
Recommended base plates: 41.173.25, 41.173.60 or 41.173.30 depending on version
ORC-complying version: 41.176.12
