$ 27.28
1-2 weeks delivery time
-
+

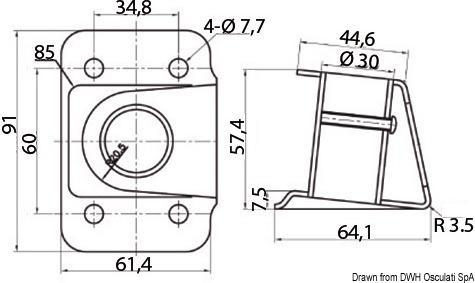

The Osculati 41.173.20 is a stanchion base with reinforcing plate for Ø25 mm pipe. Made of polished stainless steel, it features a 4° deck angle and a 4-screw mounting configuration for a sturdy installation. The technical drawing shows a Ø30 mm upper seat, four Ø7.7 mm mounting holes, and an overall base footprint of approximately 61.4 x 91 mm.
- Description
- Ask a Question
-
Osculati 41.173.20 Reinforced AISI 316 Stainless Steel Stanchion Base for Ø25 mm Pipe
The Osculati 41.173.20 is a stanchion base with reinforcing plate designed for Ø25 mm pipe. It is made of polished stainless steel and is intended for sturdy deck installation.
This version features a 4° deck angle and a 4-screw mounting system. The technical drawing also indicates a Ø30 mm upper seat and four Ø7.7 mm mounting holes.
Technical Specifications
Manufacturer Osculati Article Number 41.173.20 Product Type Stanchion base with reinforcing plate Material Polished stainless steel For Pipe Diameter Ø25 mm Deck Angle 4° Mounting 4-screw mounting Upper Seat Diameter Ø30 mm Mounting Hole Diameter 4 x Ø7.7 mm Base Footprint 61.4 x 91 mm
Key Features
- Stanchion base with reinforcing plate
- Made of polished stainless steel
- Suitable for Ø25 mm pipe
- 4° deck angle
- 4-screw mounting
- Very sturdy and practical construction
-
