ID
1396084
$ 100.82
1-2 weeks delivery time
Type:
- Straight
- Angle 6°

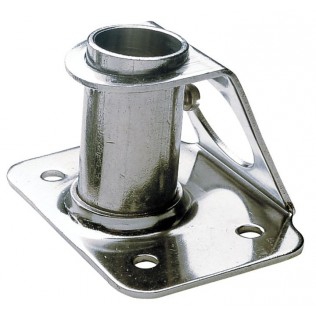

The Vetus STANCHP stanchion socket is manufactured from AISI 316 stainless steel and is designed for Ø25 mm stanchions. It is available in two versions: STANCHPR with a straight 90° configuration and STANCHPS with a 6° angled configuration. The mounting base measures 65 × 90 mm and has four Ø7 mm fixing holes, with 35 mm horizontal and 60 mm vertical hole spacing. Both versions are suitable for Vetus STANCH61 and STANCH75 stanchions.
- Description
- Ask a Question
-
Vetus STANCHP Stanchion Socket Ø25 mm, AISI 316 Stainless Steel – Straight / 6° Angled
The Vetus STANCHP stanchion socket is designed for mounting Ø25 mm boat stanchions. Manufactured from AISI 316 stainless steel, the socket is available in straight and angled configurations to suit different railing installations.
The STANCHPR version provides a straight 90° installation, while the STANCHPS version is angled by 6°. Both sockets are compatible with Vetus STANCH61 and STANCH75 stanchions.
Key Features
- Manufactured from AISI 316 stainless steel
- Suitable for Ø25 mm stanchions
- Available in straight 90° and 6° angled versions
- Base dimensions: 65 × 90 mm
- Four Ø7 mm mounting holes
- Horizontal mounting hole spacing: 35 mm
- Vertical mounting hole spacing: 60 mm
- Suitable for Vetus STANCH61 and STANCH75 stanchions
Available Versions
Type Description Stanchion Diameter Configuration STANCHPR Straight Ø25 mm 90° STANCHPS Angled Ø25 mm 6° angle
Technical Specifications
Material AISI 316 stainless steel Stanchion Diameter Ø25 mm Base Size 65 × 90 mm Mounting Holes 4 × Ø7 mm Horizontal Hole Spacing 35 mm Vertical Hole Spacing 60 mm Compatible Stanchions Vetus STANCH61 / STANCH75 -
