$ 23.96
1-2 weeks delivery time
Length, mm:
- 254
- 339
- 441
- 524
- 634
- 782
- 947
The Osculati oval handrail is made from mirror-polished AISI 316 stainless steel with a 19×25 mm profile and concealed stud mounting. Depending on the size, the handrail is secured with 2 or 3 Ø5/16" (Ø8 mm) studs. Available overall lengths range from 254 to 947 mm, with mounting hole spacing from 220 to 915 mm. Most versions have a height of 58 mm, while article 41.910.12 has a height of 65 mm.
- Description
- Ask a Question
-

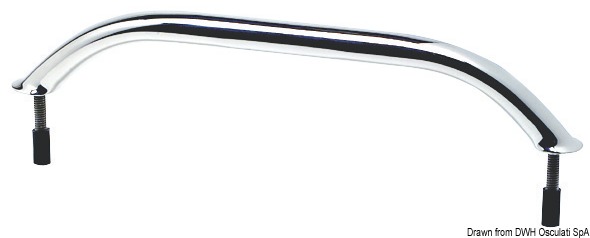

Osculati Oval Handrail with Hidden Stud Mounting – AISI 316 Stainless Steel, 19×25 mm
The Osculati oval handrail is manufactured from mirror-polished AISI 316 stainless steel and features a 19×25 mm oval profile. Installation is carried out using concealed mounting studs, leaving the fastening system hidden after installation.
The handrail is available in several lengths and is secured with either 2 or 3 studs depending on the version. The mounting studs have a diameter of Ø5/16" (Ø8 mm).
Key Features
- Mirror-polished AISI 316 stainless steel construction
- Oval profile: 19×25 mm
- Hidden stud mounting
- Stud diameter: Ø5/16" / Ø8 mm
- 2 or 3 mounting points depending on handrail length
- Available in multiple overall lengths from 254 to 947 mm
Available Versions
Article No. Overall Length Hole Spacing Profile Height Mounting Points 41.910.09 254 mm 220 mm 19×25 mm 58 mm 2 41.910.12 339 mm 305 mm 19×25 mm 65 mm 2 41.910.16 441 mm 407 mm 19×25 mm 58 mm 2 41.910.18 524 mm 490 mm 19×25 mm 58 mm 2 41.910.24 634 mm 600 mm 19×25 mm 58 mm 2 41.910.30 782 mm 750 mm 19×25 mm 58 mm 3 41.910.36 947 mm 915 mm 19×25 mm 58 mm 3
Technical Specifications
Material AISI 316 stainless steel Finish Mirror-polished Profile Oval, 19×25 mm Fastening Hidden mounting studs Stud Diameter Ø5/16" / Ø8 mm Mounting Points 2 or 3, depending on version -
