ID
1385514
$ 323.75
1-2 weeks delivery time
Item:
- Boat 7-9 ton
- Boat 9-13 ton
- Boat 13-17 ton
- Boat 17-20 ton
The Douglas Marine Master Mooring Junior is a patented mooring compensator designed for vessels with a displacement from 7 to 20 tonnes. Built with high-resistance stainless steel, special elastomers and nylon extension limiters, it absorbs dynamic loads generated by waves and vessel movement, reducing stress on mooring lines, cleats and dock fittings. All versions feature a 420 mm body length, Ø85 mm diameter, 120 mm stroke, 7,000 kg working load, and 15,000–20,000 kg breaking load, with elastomers rated for temperatures from -40°C to +120°C and up to 400,000 operating cycles.
- Description
- Ask a Question
-

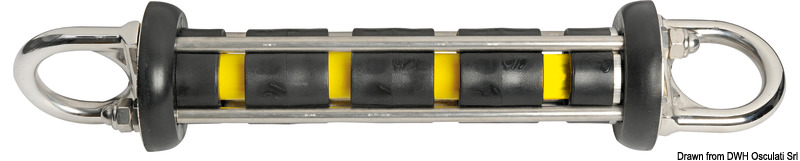

Douglas Marine Master Mooring Junior Compensator for 7–20 Ton Boats
The Douglas Marine Master Mooring Junior is a patented marine shock absorber designed to reduce dynamic loads transferred to mooring lines, dock cleats and onboard fittings. Its progressive elastomer system absorbs shocks caused by waves, swell, wind and vessel movement, improving comfort while protecting the entire mooring system.
The compensator combines high-resistance stainless steel, special marine-grade elastomers and nylon extension limiters. The elastomer operates in temperatures from -40°C to +120°C and is designed for up to 400,000 working cycles. All models feature a compact Ø85 mm body with a 120 mm working stroke and are suitable for vessels from 7 to 20 tonnes.
Features
- Patented Douglas Marine Master Mooring Junior design
- Designed for boats from 7 to 20 tonnes displacement
- Reduces shock loads on mooring lines and dock hardware
- High-resistance stainless steel construction (120–140 kg/mm²)
- Special marine elastomer system
- Nylon extension limiters
- Operating temperature: -40°C to +120°C
- Service life up to 400,000 operating cycles
- Working load: 7,000 kg
- Breaking load up to 20,000 kg
Available Variants
Osculati SKU Osculati Code Douglas Marine SKU Boat Size Weight Breaking Load Working Load Stroke Elastic Capacity 0202812 01.207.01 806-0017 7–9 t 2.2 kg 15,000 kg 7,000 kg 120 mm 160 kg 0202814 01.207.02 806-0018 9–13 t 2.3 kg 15,000 kg 7,000 kg 120 mm 250 kg 0202816 01.207.03 806-0019 13–17 t 2.0 kg 15,000 kg 7,000 kg 120 mm 450 kg 0202818 01.207.04 806-0019PLUS 17–20 t 2.4 kg 20,000 kg 7,000 kg 120 mm 750 kg
Technical Specifications
Brand Douglas Marine Series Master Mooring Junior Product Type Mooring Compensator / Mooring Shock Absorber Construction High-resistance stainless steel with marine elastomer system Stainless Steel Strength 120–140 kg/mm² Extension Limiters Special nylon Operating Temperature -40°C to +120°C Service Life Up to 400,000 cycles Overall Length 420 mm Body Diameter 85 mm Maximum Stroke 120 mm Working Load 7,000 kg Breaking Load 15,000–20,000 kg Suitable Boat Size 7–20 tonnes displacement -
