ID
1385555
$ 221.17
1-2 weeks delivery time
Type:
- MWL 3000 kg
- MWL 5000 kg
- MWL 20000 kg
- MWL 30000 kg
Item:
- Elasticity 260 kg
- Elasticity 1500 kg
- Elasticity 1800 kg
- Elasticity 2500 kg
The Sidermarine Hybrid Mooring Dampers combine high-strength stainless steel springs with engineered elastomers to provide progressive shock absorption for demanding mooring applications. The patented hybrid design effectively reduces stress on mooring lines, minimizes vessel movement, and improves comfort during changing weather and sea conditions. Designed for vessels from 10 to 90 tonnes, the range offers damping capacities from 260 to 2,500 kg, maximum working loads from 3,000 to 30,000 kg, and complies with ISO 10069-1.
- Description
- Ask a Question
-

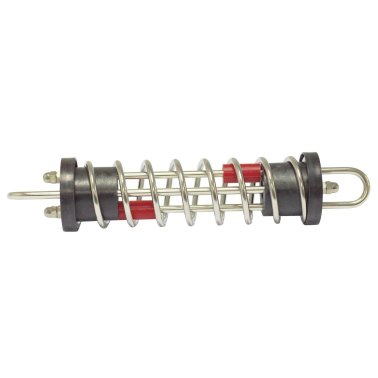

Sidermarine Hybrid Stainless Steel & Elastomer Mooring Dampers
Sidermarine Hybrid Mooring Dampers are engineered to reduce dynamic loads generated during mooring by combining high-strength stainless steel springs with advanced technical elastomers. The patented hybrid system delivers progressive shock absorption, reducing stress on mooring lines, cleats and dock hardware while improving vessel stability and onboard comfort.
The damping characteristics are adapted to the vessel size and operating loads, providing smooth and controlled energy absorption under varying sea conditions. The construction is designed for long service life in demanding marine environments and complies with ISO 10069-1.
Key Features
- Patented hybrid spring and elastomer technology
- High-strength stainless steel construction
- Progressive shock absorption
- Reduces loads on mooring lines and deck fittings
- Improves vessel stability while moored
- Operating temperature: -20°C to +80°C (short periods from -40°C to +120°C)
- Recommended for vessels from 10 to 90 tonnes
- Complies with ISO 10069-1
Technical Specifications
Sidermarine Model VDM / Reya SKU Spring Ø Elastic Capacity Maximum Working Load MPP/T-007 (MPPT/-007S) MR085207 74 mm 260 kg 3,000 kg MK 40 MR090040 85 mm 1,500 kg 5,000 kg MK 45 MR090045 96 mm 1,500 kg 20,000 kg MK 50 MR090050 96 mm 1,800 kg 20,000 kg MK 55 MR090055 108 mm 2,500 kg 30,000 kg -
