ID
1379150
$ 318.82
1-2 weeks delivery time
Item:
- Boat 11 meter
- Boat 14 meter
- Boat 16 meter
The Douglas Marine Cardan mooring device combines a stainless steel spring with a cardanic articulated head mounted on stainless steel ball joints. This design prevents rope and chain twisting while ensuring perfect axial alignment throughout spring movement. Available for vessels up to 16 m, the system provides elastic capacities from 120 kg to 400 kg and breaking loads up to 6200 kg.
- Description
- Ask a Question
-

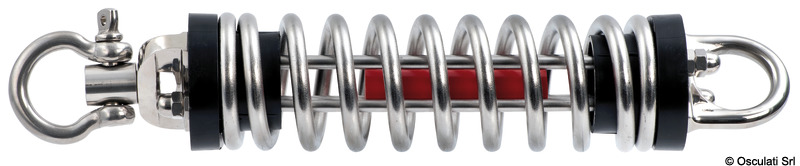

Douglas Marine Cardan Stainless Steel Mooring Device – Anti-Twist Spring, For Boats up to 16 m
The Douglas Marine Cardan mooring device is designed to absorb mooring shock loads while preventing rope and chain twisting during operation.
The spring is mounted on a cardanic articulated head supported by stainless steel ball joints. This configuration maintains perfect axial alignment and parallelism throughout extension and compression, reducing stress on ropes, chains and deck hardware.
The anti-twist design improves mooring efficiency and extends the service life of connected components while delivering controlled elasticity under dynamic loading conditions.
- Stainless steel spring assembly;
- Cardanic articulated head design;
- Stainless steel ball-joint mounting;
- Prevents rope and chain twisting;
- Maintains axial alignment during operation;
- Suitable for boats up to 16 m.
Code For Boats up to (m) Ø (mm) Length (mm) Wire Ø (mm) Elastic Capacity (kg) Breaking Load (kg) 01.203.11 11 75 380 8 120 2500 01.203.14 14 90 480 9 190 3800 01.203.16 16 90 480 12 400 6200 -
