ID
1385519
$ 1,069.29
1-2 weeks delivery time
Item:
- Boat 20-25 ton
- Boat 25-35 ton
- Boat 35-45 ton
The Douglas Marine Master Mooring 20 is a patented heavy-duty mooring compensator designed for vessels from 20 to 45 tonnes displacement. Its construction combines high-resistance stainless steel, special elastomers and nylon extension limiters to absorb dynamic loads caused by swell, wake, wind and vessel movement. All versions have a 440 mm length, Ø100 mm body diameter, 90 mm stroke, 14,000 kg working load and 27,000 kg breaking load. The elastomer operates from -40°C to +120°C and is rated for up to 400,000 working cycles. The range includes three variants with elastic capacities from 1,400 to 2,300 kg.
- Description
- Ask a Question
-

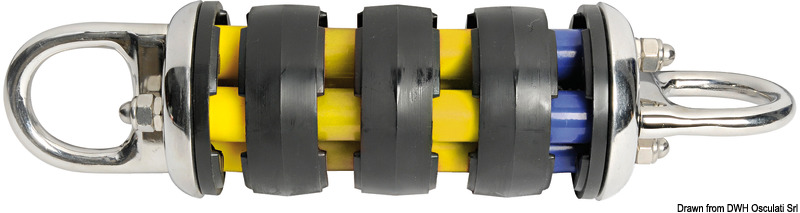

Douglas Marine Master Mooring 20 Heavy-Duty Compensator for 20–45 Ton Boats
The Douglas Marine Master Mooring 20 is a patented heavy-duty mooring compensator engineered for medium and large vessels with a displacement from 20 to 45 tonnes. It absorbs dynamic loads generated by swell, wake, wind, currents and vessel movement, reducing stress transferred to mooring lines, cleats, bollards and deck fittings.
The system combines high-resistance stainless steel with special marine elastomers and nylon extension limiters. Its controlled elastic response provides smoother load transfer during mooring while helping to protect both onboard and shore-side hardware.
The elastomer system is designed for temperatures from -40°C to +120°C and is rated for up to 400,000 working cycles. All versions share the same compact dimensions and load ratings, while the internal elastic capacity is selected according to vessel displacement.
Key Features
- Original Douglas Marine Master Mooring 20 series
- Patented heavy-duty mooring compensator design
- Suitable for vessels from 20 to 45 tonnes
- High-resistance stainless steel construction rated at 120–140 kg/mm²
- Special elastomer damping system
- Nylon extension limiters
- Reduces dynamic loads on mooring lines and fittings
- Operating temperature from -40°C to +120°C
- Service life up to 400,000 working cycles
- 27,000 kg breaking load
- 14,000 kg working load
Available Variants
Osculati Catalogue Article Osculati Item Douglas Marine Article Boat Displacement Elastic Capacity Weight Working Load Breaking Load 01.208.01 0202820 806-0020 20–25 t 1,400 kg 3.4 kg 14,000 kg 27,000 kg 01.208.02 0202821 806-0021 25–35 t 1,600 kg 3.4 kg 14,000 kg 27,000 kg 01.208.03 0202822 806-0022 35–45 t 2,300 kg 3.4 kg 14,000 kg 27,000 kg
Technical Specifications
Brand Douglas Marine Series Master Mooring 20 Product Type Heavy-duty mooring compensator / shock absorber Suitable Vessel Displacement 20–45 tonnes Construction High-resistance stainless steel with elastomer system Stainless Steel Strength 120–140 kg/mm² Extension Limiters Special nylon Elastomer Operating Temperature -40°C to +120°C Service Life Up to 400,000 cycles Overall Length 440 mm Body Diameter 100 mm Maximum Stroke 90 mm Working Load 14,000 kg Breaking Load 27,000 kg Elastic Capacity 1,400–2,300 kg, depending on model Application Heavy-duty marina and permanent mooring systems
Included Articles
- Osculati 01.208.01 / Item 0202820 / Douglas Marine 806-0020 — for vessels 20–25 t
- Osculati 01.208.02 / Item 0202821 / Douglas Marine 806-0021 — for vessels 25–35 t
- Osculati 01.208.03 / Item 0202822 / Douglas Marine 806-0022 — for vessels 35–45 t
-
