Vetus Zinc Bolt-On Hull Anodes – Type 15, 25 & 35

ID 1400834

$ 47.73

1-2 weeks delivery time

Size:

150x70x25
250x75x30
350x80x35

Item:

980 g
2500 g
4700 g

Vetus V-Quipment zinc bolt-on hull anodes for cathodic protection of underwater metal components in salt and brackish water. Manufactured from zinc to MIL-A-18001K specification, the range includes ZINK15C 150 x 70 x 25 mm at 0.98 kg, ZINK25C 250 x 75 x 30 mm at 2.50 kg and ZINK35C 350 x 80 x 35 mm at 4.70 kg. Each anode uses a two-point bolt-on mounting arrangement and requires separate connection kits for installation.

Description
Ask a Question

Vetus V-Quipment Zinc Bolt-On Hull Anodes – Type 15, 25 & 35

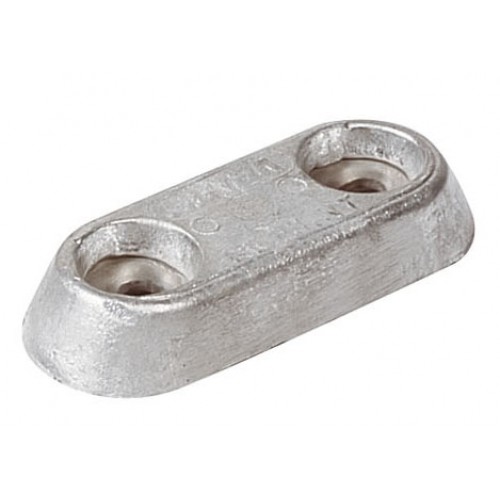

The Vetus V-Quipment zinc bolt-on hull anodes are sacrificial anodes designed for cathodic protection of underwater metal components on vessels operating in salt and brackish water.

The anodes are manufactured from zinc to MIL-A-18001K specification and are available in Type 15, Type 25 and Type 35 sizes. Each version uses a two-point bolt-on mounting arrangement for installation on the hull.

Available Models

Product Code	Type	Dimensions (L × W × H)	Weight	Protection Area*
ZINK15C	15	150 × 70 × 25 mm	0.98 kg	14 / 7 / 3.5 m²
ZINK25C	25	250 × 75 × 30 mm	2.50 kg	24 / 12 / 6.5 m²
ZINK35C	35	350 × 80 × 35 mm	4.70 kg	40 / 20 / 10.5 m²

*Protection area for adequately painted / worn paint / unpainted surfaces.

Mounting Dimensions

ZINK15C: 150 mm length, 70 mm width, 25 mm height, 74 mm mounting-centre distance
ZINK25C: 250 mm length, 75 mm width, 30 mm height, 140 mm mounting-centre distance
ZINK35C: 350 mm length, 80 mm width, 35 mm height, 200 mm mounting-centre distance

Installation

The anodes must have direct electrical contact with the metal components being protected. For steel hulls, the Vetus ZKITS connection set is used. For GRP, fibreglass and wooden hulls, the Vetus ZKITP through-hull connection set provides mounting and electrical connection to the protected metal components.

Types 15, 25 and 35 require two connection kits per anode. The mounting side has a protective paint layer to help prevent damage to the hull coating.
