Vetus Type 8 Bolt-On Anodes Ø90x45 mm

ID 1400827

$ 34.60

1-2 weeks delivery time

Type:

Aluminum
Zinc

Vetus V-Quipment bolt-on sacrificial anodes available in aluminium and zinc versions with Ø90 x 45 mm body dimensions and an Ø8 mm central mounting hole. ALU08C is manufactured from aluminium-indium-zinc alloy to MIL-A-24779 (SH) specification and weighs approximately 0.47 kg, while ZINK8C is manufactured from zinc to MIL-A-18001K specification and weighs approximately 1.00 kg. Aluminium is intended mainly for freshwater use, while zinc is suitable for salt and brackish water.

Description
Ask a Question

Vetus V-Quipment Bolt-On Anodes Ø90x45 mm – Aluminium & Zinc

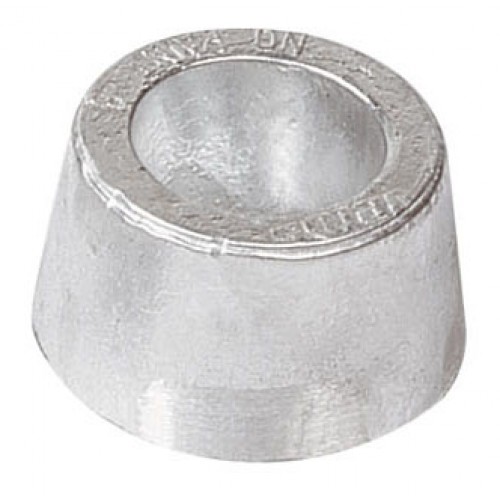

The Vetus V-Quipment Type 8 bolt-on anodes are sacrificial anodes designed for cathodic protection of underwater metal components. They are available in aluminium and zinc versions with identical external dimensions.

The anode body measures Ø90 x 45 mm and features a central Ø8 mm mounting hole.

Available Versions

Product Code	Material	Specification	Dimensions	Weight
ALU08C	Aluminium-indium-zinc alloy	MIL-A-24779 (SH)	Ø90 x 45 mm, Ø8 mm hole	Approx. 0.47 kg
ZINK8C	Zinc	MIL-A-18001K	Ø90 x 45 mm, Ø8 mm hole	Approx. 1.00 kg

Material Selection

ALU08C Aluminium: Recommended mainly for vessels operating in fresh water.
ZINK8C Zinc: Recommended for vessels operating in salt water or brackish water.
Aluminium can also be used in salt water, where it is consumed at a faster rate.

Installation

The anodes can be installed using studs welded to a steel hull or through-hull bolts for fibreglass and wooden vessels. Mounting studs and bolts are supplied separately.

The anode should be inspected regularly and replaced when approximately 50% of the sacrificial material has been consumed.
