Vetus Aluminium Bolt-On Hull Anodes – Type 15, 25 & 35

ID 1400830

$ 36.38

1-2 weeks delivery time

Size:

150x70x25
250x75x30
300x80x35

Item:

1100 g
2100 g
490 g

Vetus V-Quipment aluminium bolt-on hull anodes for cathodic protection of underwater metal components, manufactured from aluminium-indium-zinc alloy to MIL-A-24779 (SH). Available in three sizes: ALU15C 150 x 70 x 25 mm at 0.49 kg, ALU25C 250 x 75 x 30 mm at 1.10 kg and ALU35C 300 x 80 x 35 mm at 2.10 kg. The anodes are intended primarily for vessels operating in fresh water and are installed using separate connection kits for steel, fibreglass or wooden hulls.

Description
Ask a Question

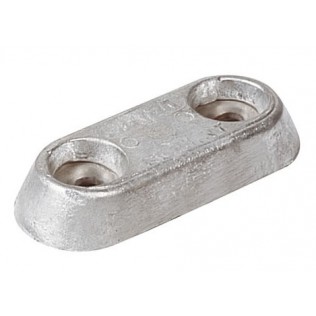

Vetus V-Quipment Aluminium Bolt-On Hull Anodes – Type 15, 25 & 35

The Vetus V-Quipment aluminium bolt-on hull anodes provide sacrificial cathodic protection for underwater metal components. They are manufactured from an aluminium-indium-zinc alloy to MIL-A-24779 (SH) specification and are intended primarily for vessels operating in fresh water.

The range includes Type 15, Type 25 and Type 35 versions with different dimensions, weights and protection capacities. Each anode uses a two-point bolt-on mounting arrangement and can be replaced without welding the anode body directly to the hull.

Available Models

Product Code	Type	Dimensions (L × W × H)	Weight	Protection Area*
ALU15C	15	150 × 70 × 25 mm	0.49 kg	14 / 7 / 3.5 m²
ALU25C	25	250 × 75 × 30 mm	1.10 kg	24 / 12 / 6.5 m²
ALU35C	35	300 × 80 × 35 mm	2.10 kg	40 / 20 / 10.5 m²

*Protection areas are listed for adequately painted / worn paint / unpainted surfaces.

Mounting Dimensions

ALU15C: 150 mm overall length, 70 mm width, 25 mm height, 74 mm mounting-centre distance
ALU25C: 250 mm overall length, 75 mm width, 30 mm height, 140 mm mounting-centre distance
ALU35C: 300 mm overall length, 80 mm width, 35 mm height, 200 mm mounting-centre distance

Installation

The anodes require direct electrical contact with the metal components being protected. For steel hulls, the Vetus ZKITS connection set is used. For GRP, fibreglass and wooden hull installations, the Vetus ZKITP through-hull connection set is used, with a wire connection to the metal components requiring protection.

Types 15, 25 and 35 require two connection kits per anode. The mounting side of the anode has a protective paint layer to help prevent damage to the hull coating.
