ID
1300811
$ 90.67
1-2 weeks delivery time
-
+
Vetus BOA005Z is a large rectangular bolt-on zinc hull anode designed for long-term cathodic protection in saltwater and brackish environments. With an overall length of 295 mm, an anode body size of 215 × 94 × 31 mm, a center-to-center distance of 255 mm, and a net weight of approximately 3.14–3.40 kg, this anode is intended for extended protection of hulls and structural metal parts on commercial and heavy-duty vessels.
- Description
- Ask a Question
-

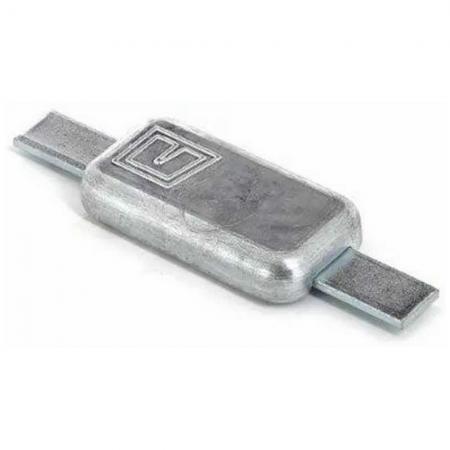

Vetus BOA005Z Bolt-On Zinc Hull Anode Rectangular 3.40 kg
The Vetus BOA005Z is a high-capacity bolt-on zinc hull anode developed for demanding marine applications in saltwater and brackish environments. Manufactured from high-purity zinc in accordance with MIL-A-18001K standards, this anode provides durable and reliable cathodic protection for hull structures, keels, stern tubes, shafts, and other heavily exposed underwater metal components.
Zinc anodes are the preferred solution for saltwater operation due to their stability and controlled consumption rate. The BOA005Z combines a large mass with an extended rectangular profile, ensuring wide protection coverage and long service intervals. The integrated steel strap allows secure bolt-on installation and straightforward replacement once the anode material has been consumed.
Key Features
- Large zinc hull anode for heavy-duty applications
- Designed for saltwater and brackish water operation
- Manufactured to MIL-A-18001K specification
- Rectangular streamlined contour
- Bolt-on mounting with integrated steel strap
- High mass for extended protection interval
Technical Specifications
Parameter Value Product Code BOA005Z Anode Material Zinc (MIL-A-18001K) Anode Type Bolt-on hull anode Contour Rectangular Overall Length 295 mm Anode Body Dimensions 215 × 94 × 31 mm Steel Strap Dimensions 295 × 25 × 5 mm Center-to-Center Distance 255 mm Net Weight 3.14–3.40 kg
Application Parameters
- Cathodic protection of large underwater metal components
- Use on vessels operating in saltwater
- Suitable for brackish water environments
- Installation on hulls and major structural elements
- Recommended inspection annually and replacement at 50% wear
-
