ID
1300810
$ 56.07
1-2 weeks delivery time
-
+
Vetus BOA005A is a large rectangular bolt-on aluminium hull anode designed for cathodic protection in freshwater, brackish water, and saltwater environments. With an overall length of 295 mm, a center-to-center distance of 255 mm, and a net weight of approximately 1.28–1.52 kg, this anode provides extended protection for larger underwater metal surfaces on medium and large vessels.
- Description
- Ask a Question
-

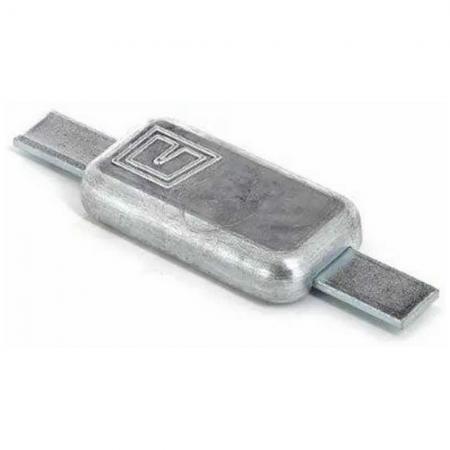

Vetus BOA005A Bolt-On Aluminium Hull Anode Rectangular 1.52 kg
The Vetus BOA005A is a high-capacity bolt-on aluminium hull anode developed for effective cathodic protection of underwater metal components in freshwater, brackish water, and saltwater environments. Manufactured from aluminium alloy in accordance with MIL-A-24779 (SH) standards, this anode offers high electrochemical efficiency and reliable corrosion prevention for hull structures, rudders, steering systems, and other submerged metal parts.
Aluminium anodes are a lightweight and environmentally considerate alternative to zinc and provide superior performance in brackish water and areas with lower salt concentrations. The BOA005A combines increased mass with a long rectangular profile, ensuring extended service life and wide protection coverage. Bolt-on installation enables secure mounting and straightforward replacement once the anode material has been consumed.
Key Features
- Large aluminium hull anode for extended protection coverage
- Suitable for freshwater, brackish water, and saltwater use
- Manufactured to MIL-A-24779 (SH) specification
- Rectangular streamlined contour
- Bolt-on mounting for easy replacement
- Lightweight and environmentally considerate material
Technical Specifications
Parameter Value Product Code BOA005A Anode Material Aluminium alloy (MIL-A-24779 SH) Anode Type Bolt-on hull anode Contour Rectangular Overall Length 295 mm Center-to-Center Distance 255 mm Net Weight 1.28–1.52 kg
Application Parameters
- Cathodic protection of underwater metal components
- Use on vessels operating in freshwater, brackish water, and saltwater
- Protection of hulls and large structural metal parts
- Suitable for medium and large-area coverage
- Recommended inspection annually and replacement at 50% wear
-
