ID
1300813
$ 130.04
1-2 weeks delivery time
-
+
Vetus BOA006Z is a large rectangular zinc hull anode designed for heavy-duty cathodic protection in saltwater and brackish environments. With an overall length of 350 mm, an anode body size of 250 × 108 × 35 mm, and a net weight of approximately 5.15–5.60 kg, this anode is intended for hulls, keels, and other submerged structural elements. It supports weld-on installation or custom drilling for flexible mounting solutions.
- Description
- Ask a Question
-

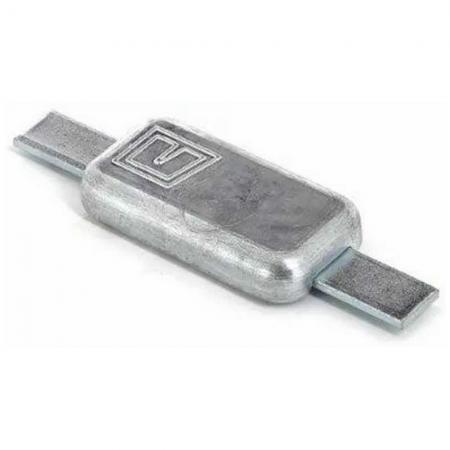

Vetus BOA006Z Bolt-On Zinc Hull Anode Rectangular 5.60 kg
The Vetus BOA006Z is a heavy-duty zinc hull anode developed for demanding marine applications in saltwater and brackish environments. Manufactured from high-purity zinc in accordance with MIL-A-18001K standards, this anode provides durable cathodic protection for hull structures, keels, stern tubes, and other heavily exposed underwater metal components.
Zinc anodes are the preferred solution for saltwater operation due to their stable electrochemical behavior and controlled consumption rate. The BOA006Z combines a very large mass with an extended rectangular profile, enabling wide protection coverage and long service intervals. The integrated steel strap allows weld-on installation or custom drilling for tailored mounting, making this anode suitable for flexible and non-standard installations.
Key Features
- Heavy-duty zinc hull anode for high-exposure areas
- Designed for saltwater and brackish water operation
- Manufactured to MIL-A-18001K specification
- Rectangular streamlined contour
- Weld-on or custom-drilled mounting capability
- Very high mass for extended protection interval
Technical Specifications
Parameter Value Product Code BOA006Z Anode Material Zinc (MIL-A-18001K) Anode Type Hull anode, weld-on or custom drilled Contour Rectangular Overall Length 350 mm Anode Body Dimensions 250 × 108 × 35 mm Steel Strap Dimensions 350 × 25 × 5 mm Center-to-Center Distance Approx. 310 mm Net Weight 5.15–5.60 kg
Application Parameters
- Cathodic protection of large underwater metal components
- Use on vessels operating in saltwater
- Suitable for brackish water environments
- Installation on hulls, keels, and major structural elements
- Adaptable for custom mounting requirements
- Recommended inspection annually and replacement at 50% wear
-
