ID
1300815
$ 226.68
1-2 weeks delivery time
-
+
Vetus BOA007Z is the largest rectangular zinc hull anode in the Vetus range, engineered for maximum cathodic protection in saltwater and brackish environments. With an overall length of 450 mm, an anode body size of 340 × 150 × 35 mm, an approximate center-to-center distance of 410 mm, and a net weight of about 9.70–10.40 kg, this anode is designed for large commercial vessels, offshore structures, and highly exposed hull areas. It supports weld-on installation or custom drilling for tailored mounting.
- Description
- Ask a Question
-

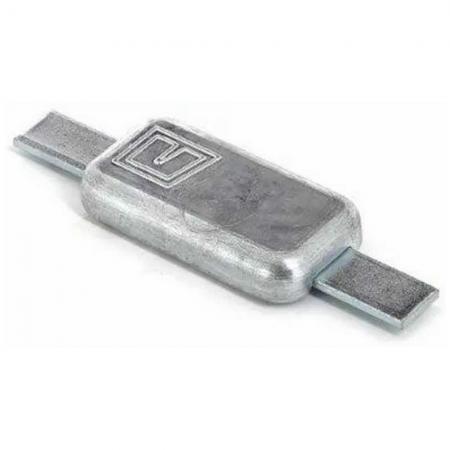

Vetus BOA007Z Bolt-On Zinc Hull Anode Rectangular 10.40 kg
The Vetus BOA007Z is the highest-capacity zinc hull anode in the Vetus series, developed for extreme marine environments and heavy-duty applications. Manufactured from high-purity zinc in accordance with MIL-A-18001K specifications, this anode delivers maximum cathodic protection for hull structures, keels, stern tubes, shafts, and other heavily exposed underwater metal components.
Zinc anodes are the preferred solution for saltwater operation due to their stable electrochemical behavior and controlled consumption rate. The BOA007Z combines very large mass with an extended rectangular profile, ensuring wide protection coverage and exceptionally long service intervals. The integrated steel strap allows weld-on installation or custom drilling, making this anode suitable for non-standard and high-load mounting locations on large vessels and offshore structures.
Key Features
- Largest zinc hull anode in the Vetus range
- Designed for saltwater and brackish water operation
- Manufactured to MIL-A-18001K specification
- Rectangular streamlined contour
- Weld-on or custom-drilled mounting capability
- Extremely high mass for maximum protection interval
Technical Specifications
Parameter Value Product Code BOA007Z Anode Material Zinc (MIL-A-18001K) Anode Type Hull anode, weld-on or custom drilled Contour Rectangular Overall Length 450 mm Anode Body Dimensions 340 × 150 × 35 mm Steel Strap Dimensions 450 × 50 × 5 mm Center-to-Center Distance Approx. 410 mm Net Weight 9.70–10.40 kg
Application Parameters
- Cathodic protection of very large underwater metal components
- Use on vessels operating in saltwater
- Suitable for brackish water environments
- Installation on hulls, keels, and major structural elements
- Best suited for commercial vessels and offshore structures
- Recommended inspection annually and replacement at 50% wear
-
