ID
1399867
$ 39.47
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
The Tecnoseal 03500 Series is a Vetus propeller nut anode for KGF125/130/160, also suitable for Twin Disc – BCS thrusters, with original part reference BP195E/SET151. Both versions have identical dimensions: Ø60 mm overall diameter, 42 mm overall height (h1), 17 mm height (h), 24 mm dimension (a), Ø6.50 mm, Ø30 mm and Ø12 mm internal diameters. Available as Zinc 03500 weighing 0.48 kg or Magnesium 03500MG weighing 0.12 kg.
- Description
- Ask a Question
-

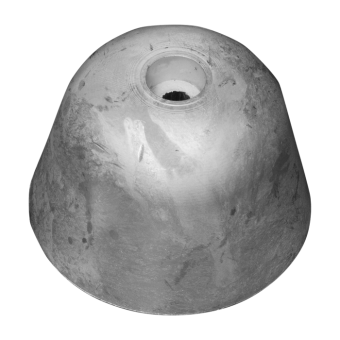

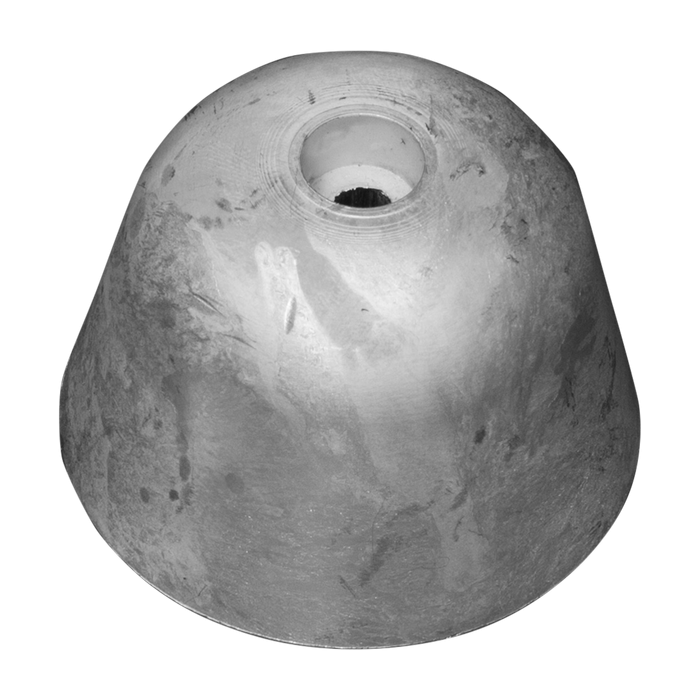

Tecnoseal 03500 Series Vetus Propeller Nut Anode Ø60 mm for KGF125/130/160 & Twin Disc BCS
The Tecnoseal 03500 Series consists of Vetus propeller nut anodes designed for KGF125/130/160 applications and also suitable for Twin Disc – BCS thrusters. The corresponding original part number is BP195E/SET151.
The series is available in Zinc and Magnesium versions. Both variants have the same dimensions, while their weight differs according to the anode material.
Technical Specifications
Product Code Material Weight a h h1 Ø Ø1 Ø2 Ø3 03500 (Osculati 43.070.08) Zinc 0.48 kg (1.06 lbs) 24 mm (0.94") 17 mm (0.67") 42 mm (1.65") 60 mm (2.36") 6.50 mm (0.26") 30 mm (1.18") 12 mm (0.47") 03500MG Magnesium 0.12 kg (0.26 lbs) 24 mm (0.94") 17 mm (0.67") 42 mm (1.65") 60 mm (2.36") 6.50 mm (0.26") 30 mm (1.18") 12 mm (0.47")
Application and Reference
- Application: Vetus KGF125/130/160
- Also fits: Twin Disc – BCS thruster
- Original Part Number: BP195E/SET151
- Available Materials: Zinc and Magnesium
Common Dimensions
- a: 24 mm (0.94")
- h: 17 mm (0.67")
- h1: 42 mm (1.65")
- Overall Diameter (Ø): 60 mm (2.36")
- Ø1: 6.50 mm (0.26")
- Ø2: 30 mm (1.18")
- Ø3: 12 mm (0.47")
-
