ID
1399872
$ 68.93
1-2 weeks delivery time
-
+
The Tecnoseal 03506 is a zinc Vetus propeller nut anode for KGF35/45/55, corresponding to original part number BP-1126 / SET0149. It weighs 0.15 kg (0.33 lbs) and measures 17 mm in height, with 50 mm overall diameter, 37 mm dimension (i), Ø43 mm, Ø15 mm and Ø5.50 mm mounting holes.
- Description
- Ask a Question
-

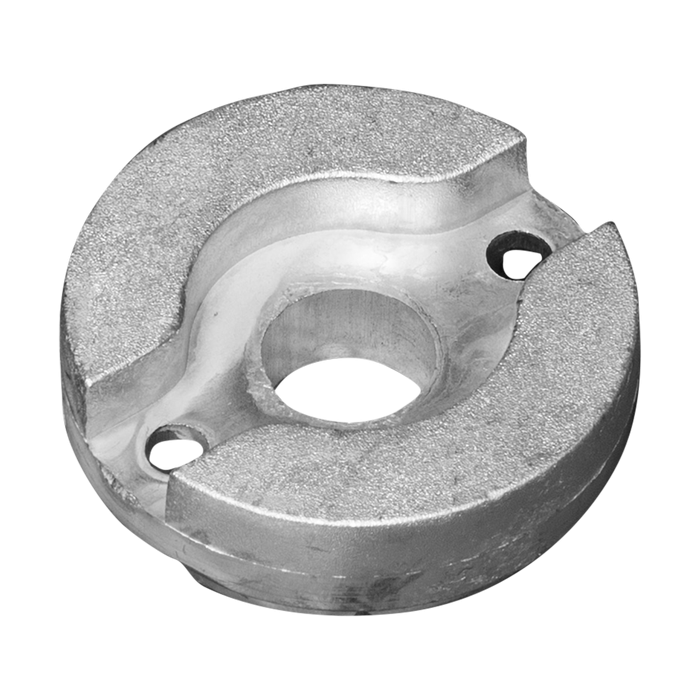

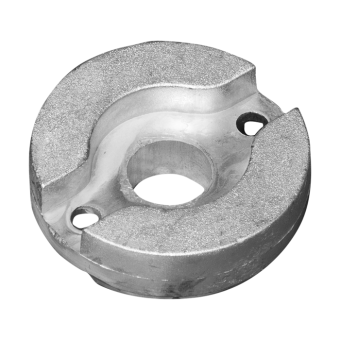

Tecnoseal 03506 Zinc Vetus Propeller Nut Anode for KGF35/45/55 – BP-1126 / SET0149
The Tecnoseal 03506 (Osculati 43.070.04) is a zinc Vetus propeller nut anode designed for KGF35/45/55 applications. The corresponding original part number is BP-1126 / SET0149.
The anode weighs 0.15 kg (0.33 lbs) and has an overall diameter of 50 mm with a height of 17 mm. Its additional dimensions are i = 37 mm, Ø1 = 43 mm, Ø2 = 15 mm and Ø3 = 5.50 mm.
Technical Specifications
Product Code 03506 Material Zinc Weight 0.15 kg (0.33 lbs) Height (h) 17 mm (0.67") Dimension (i) 37 mm (1.46") Overall Diameter (Ø) 50 mm (1.97") Ø1 43 mm (1.69") Ø2 15 mm (0.59") Ø3 5.50 mm (0.22")
Application and Reference
- Application: Vetus KGF35/45/55
- Original Part Number: BP-1126 / SET0149
-
