$ 58.15
1-2 weeks delivery time
-
+

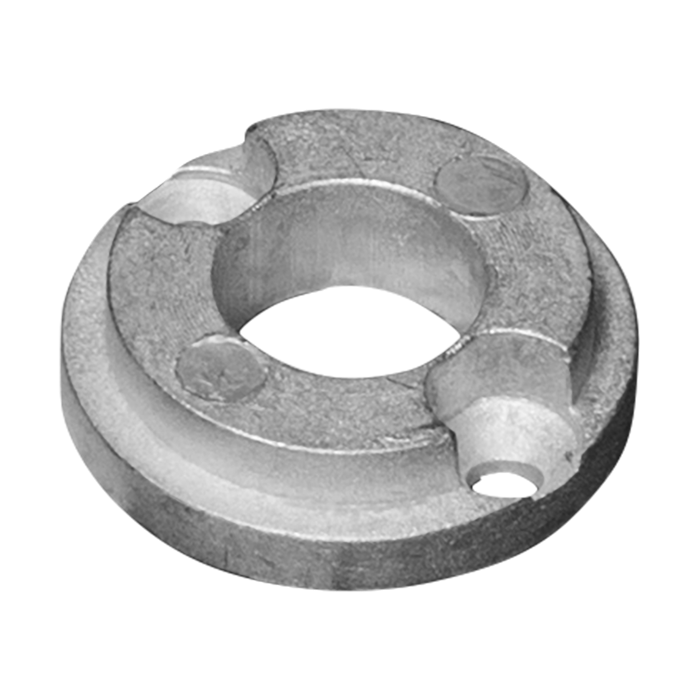

The Tecnoseal 03505 is a zinc Vetus propeller nut anode for KGF25, corresponding to original part number BP-1221 / SET0148. It weighs 0.04 kg (0.09 lbs) and measures 10 mm in height, with 38 mm overall diameter, 29 mm dimension (i), Ø32 mm, Ø17 mm and Ø4.50 mm mounting holes.
- Description
- Ask a Question
-

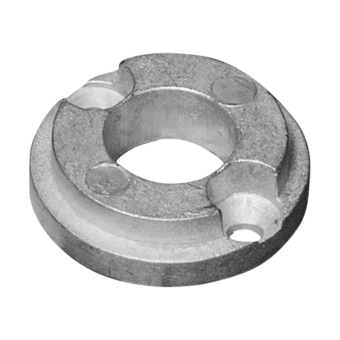

Tecnoseal 03505 Zinc Vetus Propeller Nut Anode for KGF25 – BP-1221 / SET0148
The Tecnoseal 03505 (Osculati 43.070.02) is a zinc Vetus propeller nut anode designed for KGF25 applications. The corresponding original part number is BP-1221 / SET0148.
The anode weighs 0.04 kg (0.09 lbs) and has an overall diameter of 38 mm with a height of 10 mm. Its additional dimensions are i = 29 mm, Ø1 = 32 mm, Ø2 = 17 mm and Ø3 = 4.50 mm.
Technical Specifications
Product Code 03505 Material Zinc Weight 0.04 kg (0.09 lbs) Height (h) 10 mm (0.39") Dimension (i) 29 mm (1.14") Overall Diameter (Ø) 38 mm (1.50") Ø1 32 mm (1.26") Ø2 17 mm (0.67") Ø3 4.50 mm (0.18")
Application and Reference
- Application: Vetus KGF25
- Original Part Number: BP-1221 / SET0148
-
