ID
1399927
$ 193.03
1-2 weeks delivery time
Type:
- Zinc
- Aluminium
The Tecnoseal 01053 Series is a Side-Power / Sleipner propeller nut anode for SP550 HYD, SH420 and SH550, corresponding to original part number 501180. It is available in Zinc 01053 and Aluminium 01053AL versions. Both variants share the same dimensions: a = 31 mm, h = 53 mm, Ø = 73 mm, Ø1 = 46 mm and Ø2 = 8.50 mm. The Zinc version weighs 1.06 kg (2.34 lbs), while the Aluminium version weighs 0.42 kg (0.93 lbs).
- Description
- Ask a Question
-

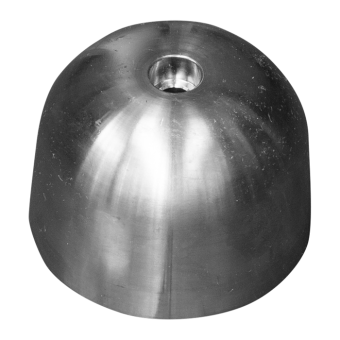

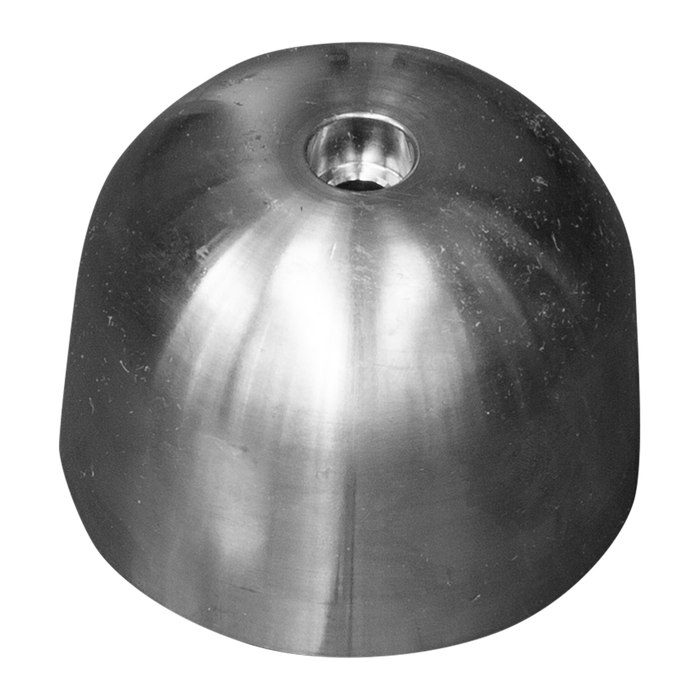

Tecnoseal 01053 Series Side-Power / Sleipner Propeller Nut Anode for SP550 HYD, SH420 & SH550 – Zinc / Aluminium – 501180
The Tecnoseal 01053 Series consists of Side-Power / Sleipner propeller nut anodes for SP550 HYD, SH420 and SH550 applications. The corresponding original part number is 501180.
The series is available in Zinc and Aluminium versions. Both variants share the same dimensions: a = 31 mm, h = 53 mm, Ø = 73 mm, Ø1 = 46 mm and Ø2 = 8.50 mm. The weight differs according to the anode material.
Technical Specifications
Product Code Material Weight a h Ø Ø1 Ø2 01053 (Osculati 43.070.27) Zinc 1.06 kg (2.34 lbs) 31 mm (1.22") 53 mm (2.09") 73 mm (2.87") 46 mm (1.81") 8.50 mm (0.33") 01053AL (Osculati 43.070.28) Aluminium 0.42 kg (0.93 lbs) 31 mm (1.22") 53 mm (2.09") 73 mm (2.87") 46 mm (1.81") 8.50 mm (0.33")
Application and Reference
- Application: Side-Power / Sleipner SP550 HYD, SH420, SH550
- Original Part Number: 501180
- Available Materials: Zinc and Aluminium
-
