Tecnoseal magnesium Teardrop Type weld-on sacrificial anodes with integrated mounting strap, available in three sizes from 0.30 to 1.00 kg. The range includes body dimensions of 120 × 78 × 25 mm, 135 × 87 × 35 mm and 160 × 100 × 40 mm, with strap sizes of 230 × 25 × 5 mm and 250 × 25 × 5 mm. The standard version is supplied with a steel insert, while aluminium or stainless steel inserts are available on request.
- Description
- Ask a Question
-

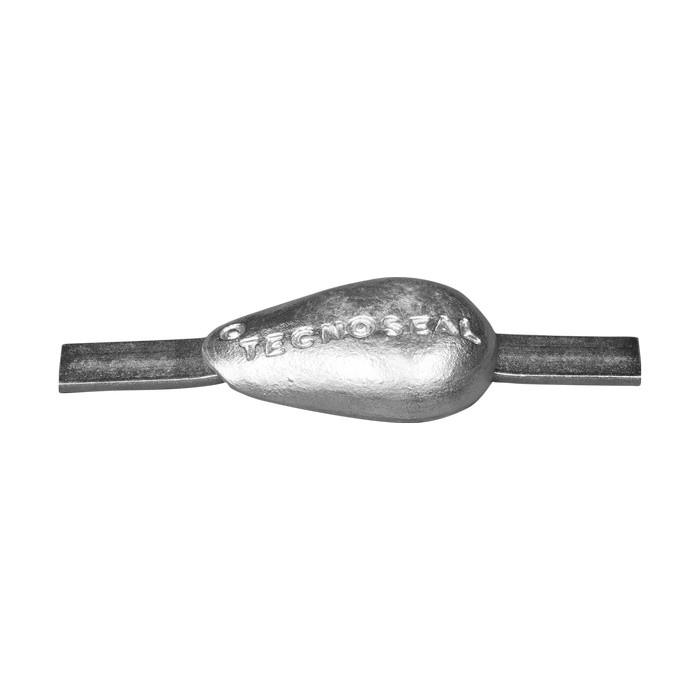

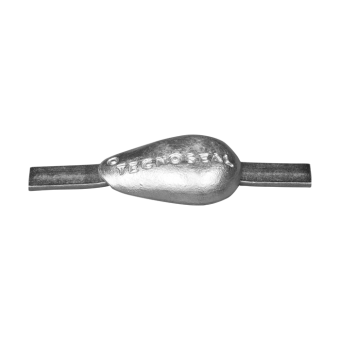

Tecnoseal Magnesium Teardrop Type Weld-On Sacrificial Anodes with Steel Insert – 0.30–1.00 kg
The Tecnoseal Magnesium Teardrop Type Weld-On Anodes are sacrificial anodes with an integrated mounting strap. The range includes three magnesium models with different body dimensions, weights and strap sizes.
The standard configuration is supplied with a steel insert. Aluminium or stainless steel inserts are also available on request. Select the required model according to the anode body dimensions, weight and strap / insert dimensions.
Key Features
- Brand: Tecnoseal
- Product Type: Weld-on sacrificial anode with strap
- Type: Teardrop Type
- Anode Material: Magnesium
- Mounting: Weld-on
- Standard Insert: Steel
- Optional Inserts: Aluminium or stainless steel available on request
- Available Models: 00350MG, 00351MG and 00352MG
- Weight Range: 0.30–1.00 kg
- Body Length Range: 120–160 mm
- Body Width Range: 78–100 mm
- Body Height Range: 25–40 mm
Available Models and Technical Specifications
Tecnoseal Code Weight Length (l) Width (a) Height (h) Strap / Insert 00350MG 0.30 kg / 300 g 120 mm 78 mm 25 mm 230 × 25 × 5 mm 00351MG 0.70 kg / 700 g 135 mm 87 mm 35 mm 250 × 25 × 5 mm 00352MG 1.00 kg / 1000 g 160 mm 100 mm 40 mm 250 × 25 × 5 mm
Tecnoseal 00350MG – 300 g
- Product Code: 00350MG
- Material: Magnesium
- Body Dimensions: 120 × 78 × 25 mm
- Strap / Insert: 230 × 25 × 5 mm
- Weight: 0.30 kg / 300 g
Tecnoseal 00351MG – 700 g
- Product Code: 00351MG
- Material: Magnesium
- Body Dimensions: 135 × 87 × 35 mm
- Strap / Insert: 250 × 25 × 5 mm
- Weight: 0.70 kg / 700 g
Tecnoseal 00352MG – 1000 g
- Product Code: 00352MG
- Material: Magnesium
- Body Dimensions: 160 × 100 × 40 mm
- Strap / Insert: 250 × 25 × 5 mm
- Weight: 1.00 kg / 1000 g
Dimensions for Model Selection
- l: Anode body length
- a: Anode body width
- h: Anode body height
- Strap / Insert: Integrated mounting strap dimensions
For replacement selection, compare the anode body dimensions, weight and strap / insert dimensions with the existing installation.
-
