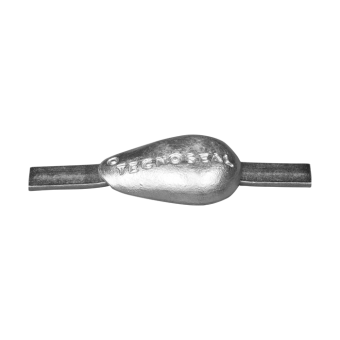

Tecnoseal Zinc Teardrop Type Weld-On Sacrificial Anodes with Steel Insert

ID 1399190

$ 47.86

1-2 weeks delivery time

Size:

120x78x25
135x87x35
160x100x40
220x140x40
280x175x50

Item:

1000 g
3000 g
1800 g
5000 g
10000 g

Tecnoseal zinc Teardrop Type weld-on sacrificial anodes with integrated strap, available in seven sizes from 1.00 to 12.00 kg. The range covers anode body dimensions from 120 × 78 × 25 mm to 280 × 175 × 60 mm, with strap sizes from 230 × 25 × 5 mm to 400 × 30 × 6 mm. The standard version is supplied with a steel insert, while aluminium or stainless steel inserts are available on request.

Description
Ask a Question

Tecnoseal Zinc Teardrop Type Weld-On Sacrificial Anodes with Steel Insert – 1–12 kg

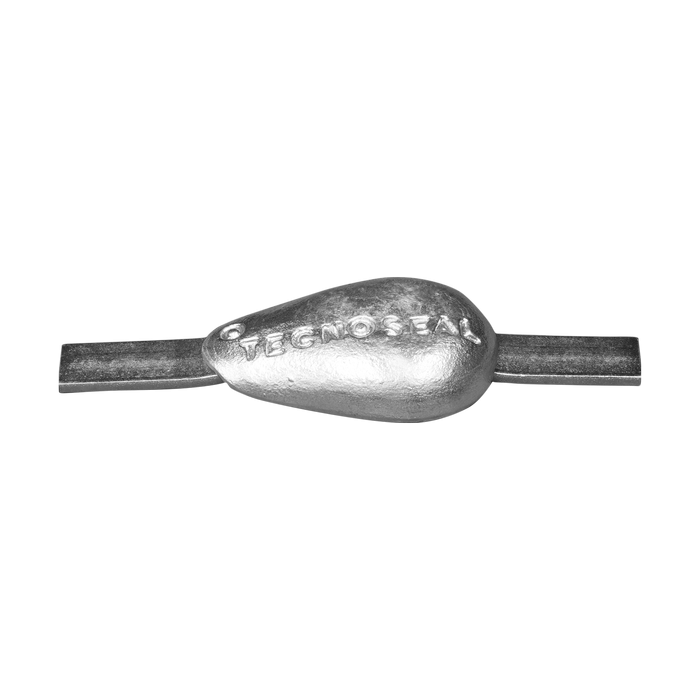

The Tecnoseal Zinc Teardrop Type Weld-On Anodes are sacrificial anodes with an integrated mounting strap. The range includes seven zinc models with different body dimensions, weights and strap sizes.

Tecnoseal 00351 is also represented in the Osculati catalogue as Osculati 43.910.00.

The standard configuration is supplied with a steel insert. Aluminium or stainless steel inserts are also available on request. Select the required version according to the anode body dimensions, weight and strap dimensions.

Key Features

Brand: Tecnoseal
Product Type: Weld-on sacrificial anode with strap
Type: Teardrop Type
Anode Material: Zinc
Mounting: Weld-on
Standard Insert: Steel
Optional Inserts: Aluminium or stainless steel available on request
Available Models: Tecnoseal 00350, Tecnoseal 00351 / Osculati 43.910.00, Tecnoseal 00352, Tecnoseal 00353, Tecnoseal 00360, Tecnoseal 00361 and Tecnoseal 00362
Weight Range: 1.00–12.00 kg
Body Length Range: 120–280 mm
Body Width Range: 78–175 mm
Body Height Range: 25–60 mm

Available Models and Technical Specifications

Reference	Weight	Length (l)	Width (a)	Height (h)	Strap / Insert
Tecnoseal 00350	1.00 kg / 1000 g	120 mm	78 mm	25 mm	230 × 25 × 5 mm
Tecnoseal 00351 / Osculati 43.910.00	1.80 kg / 1800 g	135 mm	87 mm	35 mm	250 × 25 × 5 mm
Tecnoseal 00352	3.00 kg / 3000 g	160 mm	100 mm	40 mm	250 × 25 × 5 mm
Tecnoseal 00353	5.00 kg / 5000 g	220 mm	140 mm	40 mm	340 × 25 × 5 mm
Tecnoseal 00360	10.00 kg / 10000 g	280 mm	175 mm	50 mm	400 × 30 × 6 mm
Tecnoseal 00361	11.00 kg / 11000 g	280 mm	175 mm	55 mm	400 × 30 × 6 mm
Tecnoseal 00362	12.00 kg / 12000 g	280 mm	175 mm	60 mm	400 × 30 × 6 mm

Tecnoseal 00350 – 1000 g

Product Code: 00350
Material: Zinc
Body Dimensions: 120 × 78 × 25 mm
Strap / Insert: 230 × 25 × 5 mm
Weight: 1.00 kg / 1000 g

Tecnoseal 00351 / Osculati 43.910.00 – 1800 g

Tecnoseal Code: 00351
Osculati Reference: 43.910.00
Material: Zinc
Body Dimensions: 135 × 87 × 35 mm
Strap / Insert: 250 × 25 × 5 mm
Weight: 1.80 kg / 1800 g

Tecnoseal 00352 – 3000 g

Product Code: 00352
Material: Zinc
Body Dimensions: 160 × 100 × 40 mm
Strap / Insert: 250 × 25 × 5 mm
Weight: 3.00 kg / 3000 g

Tecnoseal 00353 – 5000 g

Product Code: 00353
Material: Zinc
Body Dimensions: 220 × 140 × 40 mm
Strap / Insert: 340 × 25 × 5 mm
Weight: 5.00 kg / 5000 g

Tecnoseal 00360 – 10000 g

Product Code: 00360
Material: Zinc
Body Dimensions: 280 × 175 × 50 mm
Strap / Insert: 400 × 30 × 6 mm
Weight: 10.00 kg / 10000 g

Tecnoseal 00361 – 11000 g

Product Code: 00361
Material: Zinc
Body Dimensions: 280 × 175 × 55 mm
Strap / Insert: 400 × 30 × 6 mm
Weight: 11.00 kg / 11000 g

Tecnoseal 00362 – 12000 g

Product Code: 00362
Material: Zinc
Body Dimensions: 280 × 175 × 60 mm
Strap / Insert: 400 × 30 × 6 mm
Weight: 12.00 kg / 12000 g

Dimensions for Model Selection

l: Anode body length
a: Anode body width
h: Anode body height
Strap / Insert: Integrated mounting strap dimensions

For replacement selection, compare the Tecnoseal or corresponding Osculati reference together with the anode body dimensions, weight and strap / insert dimensions.
