Tecnoseal Magnesium Oval Type Weld-On Sacrificial Anodes with Strap for Hull & Transom

Name: Tecnoseal Magnesium Oval Type Weld-On Sacrificial Anodes with Strap for Hull & Transom
SKU: Tecnoseal 00301MG
Rating: 5 (1 reviews)

ID 1399169

$ 58.35

1-2 weeks delivery time

Size:

200x70x25
110x63x26
300x80x40
295x90x40
400x152x33
320x150x31

Item:

1500 g
700 g
430 g
1800 g
4000 g
2600 g

Tecnoseal magnesium Oval Type weld-on sacrificial anodes with integrated mounting strap for hull and transom applications. The range includes five models weighing from 0.43 to 4.00 kg, with anode body dimensions from 110 × 63 × 26 mm to 400 × 152 × 33 mm and strap dimensions from 200 × 25 × 5 mm to 550 × 40 × 6 mm. The 00309UKMG version features a 320 × 150 × 31 mm body with a 475 × 35 × 5 mm strap. Select the required model according to anode body dimensions, weight and strap size.

Description
Ask a Question

Tecnoseal Magnesium Oval Type Weld-On Sacrificial Anodes with Strap for Hull & Transom – 0.43–4.00 kg

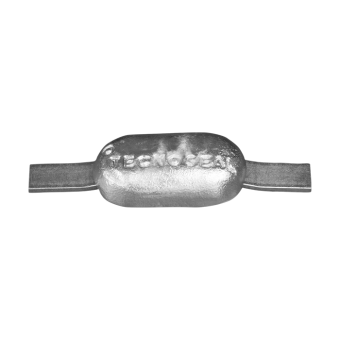

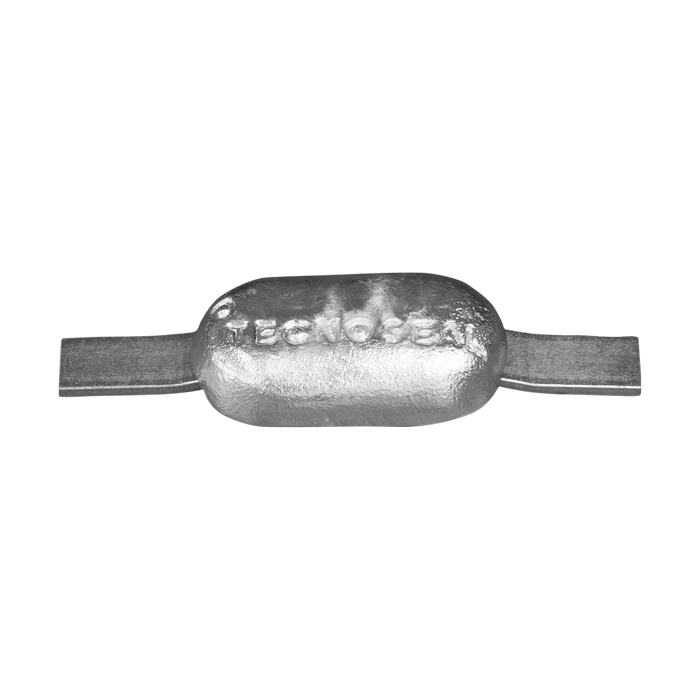

The Tecnoseal Magnesium Oval Type Weld-On Anodes are sacrificial anodes with integrated mounting straps for hull and transom applications. The range includes five magnesium models with different body dimensions, weights and strap configurations.

Selected Tecnoseal models are also represented in the Osculati catalogue: Tecnoseal 00306MG / Osculati 43.908.02, Tecnoseal 00309UKMG / Osculati 43.908.05 and Tecnoseal 00310MG / Osculati 43.908.06.

The available models range from the compact 00301MG at 0.43 kg to the 00310MG at 4.00 kg. The 00309UKMG uses a separate 320 × 150 × 31 mm configuration with a 475 × 35 × 5 mm strap.

Key Features

Brand: Tecnoseal
Product Type: Weld-on sacrificial anode with strap
Type: Oval Type
Anode Material: Magnesium
Applications: Hull and transom
Mounting: Weld-on
Available Models: Tecnoseal 00301MG, Tecnoseal 00302MG, Tecnoseal 00306MG / Osculati 43.908.02, Tecnoseal 00309UKMG / Osculati 43.908.05 and Tecnoseal 00310MG / Osculati 43.908.06
Weight Range: 0.43–4.00 kg
Body Length Range: 110–400 mm
Body Width Range: 63–152 mm
Body Height Range: 25–40 mm

Available Models and Technical Specifications

Reference	Weight	Length (l)	Width (a)	Height (h)	Strap
Tecnoseal 00301MG	0.43 kg / 430 g	110 mm	63 mm	26 mm	200 × 25 × 5 mm
Tecnoseal 00302MG	0.70 kg / 700 g	200 mm	70 mm	25 mm	300 × 25 × 5 mm
Tecnoseal 00306MG / Osculati 43.908.02	1.50 kg / 1500 g	300 mm	80 mm	40 mm	400 × 30 × 6 mm
Tecnoseal 00309UKMG / Osculati 43.908.05	2.60 kg / 2600 g	320 mm	150 mm	31 mm	475 × 35 × 5 mm
Tecnoseal 00310MG / Osculati 43.908.06	4.00 kg / 4000 g	400 mm	152 mm	33 mm	550 × 40 × 6 mm

Tecnoseal 00301MG – 430 g

Product Code: 00301MG
Material: Magnesium
Body Dimensions: 110 × 63 × 26 mm
Strap: 200 × 25 × 5 mm
Weight: 0.43 kg / 430 g

Tecnoseal 00302MG – 700 g

Product Code: 00302MG
Material: Magnesium
Body Dimensions: 200 × 70 × 25 mm
Strap: 300 × 25 × 5 mm
Weight: 0.70 kg / 700 g

Tecnoseal 00306MG / Osculati 43.908.02 – 1500 g

Tecnoseal Code: 00306MG
Osculati Reference: 43.908.02
Material: Magnesium
Body Dimensions: 300 × 80 × 40 mm
Strap: 400 × 30 × 6 mm
Weight: 1.50 kg / 1500 g

Tecnoseal 00309UKMG / Osculati 43.908.05 – 2600 g

Tecnoseal Code: 00309UKMG
Osculati Reference: 43.908.05
Material: Magnesium
Body Dimensions: 320 × 150 × 31 mm
Strap: 475 × 35 × 5 mm
Weight: 2.60 kg / 2600 g

Tecnoseal 00310MG / Osculati 43.908.06 – 4000 g

Tecnoseal Code: 00310MG
Osculati Reference: 43.908.06
Material: Magnesium
Body Dimensions: 400 × 152 × 33 mm
Strap: 550 × 40 × 6 mm
Weight: 4.00 kg / 4000 g

Dimensions for Model Selection

l: Anode body length
a: Anode body width
h: Anode body height
Strap: Insert / mounting strap dimensions

For replacement selection, compare the Tecnoseal or corresponding Osculati reference together with the anode body dimensions, weight and strap dimensions.
