ID
1399249
$ 78.67
1-2 weeks delivery time
Size:
- 200x70x25
- 100x60x18
- 110x63x26
- 210x70x28
- 200x90x33
- 200x90x40
- 240x90x36
- 300x80x40
- 295x90x40
- 220x100x46
- 295x125x38
- 320x147x35
- 320x147x38
- 400x152x33
Item:
- 1000 g
- 3000 g
- 740 g
- 1800 g
- 2200 g
- 3500 g
- 4000 g
- 5000 g
- 5600 g
- 6000 g
- 7800 g
- 8500 g
- 10000 g
- 12000 g
Tecnoseal zinc Oval Type weld-on sacrificial anodes with integrated steel strap for hull and transom applications. The range includes 14 models from 0.74 to 12.00 kg, with anode body dimensions from 100 × 60 × 18 mm to 400 × 152 × 33 mm and strap sizes from 200 × 25 × 5 mm to 550 × 40 × 6 mm. The standard version is supplied with a steel insert, while aluminium or stainless steel inserts are available on request.
- Description
- Ask a Question
-

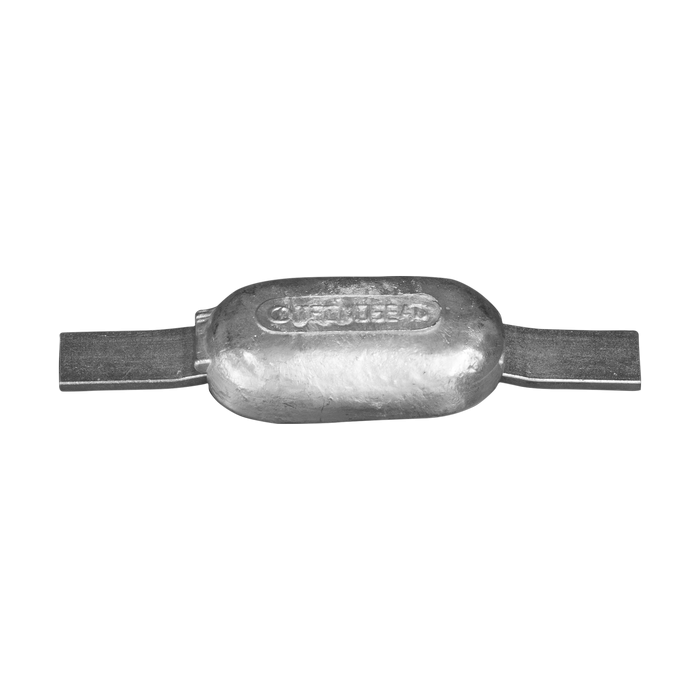

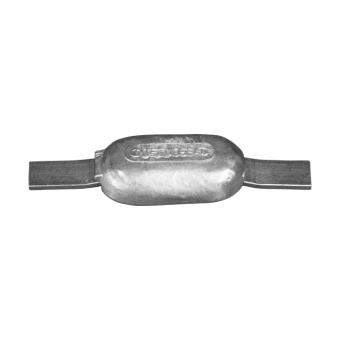

Tecnoseal Zinc Oval Type Weld-On Sacrificial Anodes with Steel Strap – 0.74–12 kg
The Tecnoseal Zinc Oval Type Weld-On Anodes are sacrificial anodes with an integrated mounting strap for hull and transom applications. The range includes multiple sizes from compact 0.74 kg models to large 12.00 kg versions.
The standard configuration uses a steel insert. Aluminium or stainless steel inserts are also available on request. The individual models differ in anode body length, width, height, weight and strap dimensions.
Key Features
- Brand: Tecnoseal
- Product Type: Weld-on sacrificial anode with strap
- Type: Oval Type
- Anode Material: Zinc
- Applications: Hull and transom
- Mounting: Weld-on
- Standard Insert: Steel
- Optional Inserts: Aluminium or stainless steel available on request
- Weight Range: 0.74–12.00 kg
- Body Length Range (l): 100–400 mm
- Body Width Range (a): 60–152 mm
- Body Height Range (h): 18–46 mm
Available Models and Technical Specifications
Tecnoseal Code Weight Length (l) Width (a) Height (h) Strap 00300 0.74 kg / 740 g 100 mm 60 mm 18 mm 200 × 25 × 5 mm 00301 1.00 kg / 1000 g 110 mm 63 mm 26 mm 200 × 25 × 5 mm 00302 1.80 kg / 1800 g 200 mm 70 mm 25 mm 300 × 25 × 5 mm 00303 2.20 kg / 2200 g 210 mm 70 mm 28 mm 300 × 25 × 5 mm 00304 3.00 kg / 3000 g 200 mm 90 mm 33 mm 300 × 25 × 5 mm 00304-1 3.50 kg / 3500 g 200 mm 90 mm 40 mm 300 × 25 × 5 mm 00305 4.00 kg / 4000 g 240 mm 90 mm 36 mm 340 × 25 × 5 mm 00306 5.00 kg / 5000 g 300 mm 80 mm 40 mm 400 × 30 × 6 mm 00307 5.60 kg / 5600 g 295 mm 90 mm 40 mm 400 × 30 × 6 mm 00307-2 6.00 kg / 6000 g 220 mm 100 mm 46 mm 350 × 40 × 8 mm 00308 7.80 kg / 7800 g 295 mm 125 mm 38 mm 400 × 30 × 6 mm 00308-5 8.50 kg / 8500 g 320 mm 147 mm 35 mm 400 × 30 × 6 mm 00309 10.00 kg / 10000 g 320 mm 147 mm 38 mm 400 × 30 × 6 mm 00310 12.00 kg / 12000 g 400 mm 152 mm 33 mm 550 × 40 × 6 mm
Compact Oval Type Zinc Anodes
- 00300: 100 × 60 × 18 mm body, 200 × 25 × 5 mm strap, 740 g.
- 00301: 110 × 63 × 26 mm body, 200 × 25 × 5 mm strap, 1000 g.
- 00302: 200 × 70 × 25 mm body, 300 × 25 × 5 mm strap, 1800 g.
- 00303: 210 × 70 × 28 mm body, 300 × 25 × 5 mm strap, 2200 g.
Medium Oval Type Zinc Anodes
- 00304: 200 × 90 × 33 mm body, 300 × 25 × 5 mm strap, 3000 g.
- 00304-1: 200 × 90 × 40 mm body, 300 × 25 × 5 mm strap, 3500 g.
- 00305: 240 × 90 × 36 mm body, 340 × 25 × 5 mm strap, 4000 g.
- 00306: 300 × 80 × 40 mm body, 400 × 30 × 6 mm strap, 5000 g.
- 00307: 295 × 90 × 40 mm body, 400 × 30 × 6 mm strap, 5600 g.
- 00307-2: 220 × 100 × 46 mm body, 350 × 40 × 8 mm strap, 6000 g.
Large Oval Type Zinc Anodes
- 00308: 295 × 125 × 38 mm body, 400 × 30 × 6 mm strap, 7800 g.
- 00308-5: 320 × 147 × 35 mm body, 400 × 30 × 6 mm strap, 8500 g.
- 00309: 320 × 147 × 38 mm body, 400 × 30 × 6 mm strap, 10000 g.
- 00310: 400 × 152 × 33 mm body, 550 × 40 × 6 mm strap, 12000 g.
Dimensions for Model Selection
- l: Anode body length
- a: Anode body width
- h: Anode body height
- Strap: Insert / mounting strap dimensions
For replacement selection, compare the anode body dimensions and strap dimensions with the existing installation.
-
