Tecnoseal zinc Ingot Type weld-on sacrificial anodes with integrated mounting strap for hull and transom applications. The range includes four models weighing from 1.60 to 10.00 kg, with anode body dimensions from 190 × 50 × 26 mm to 310 × 140 × 35 mm and strap sizes from 300 × 25 × 5 mm to 400 × 30 × 6 mm. The standard version is supplied with a steel insert, while aluminium or stainless steel inserts are available on request.
- Description
- Ask a Question
-

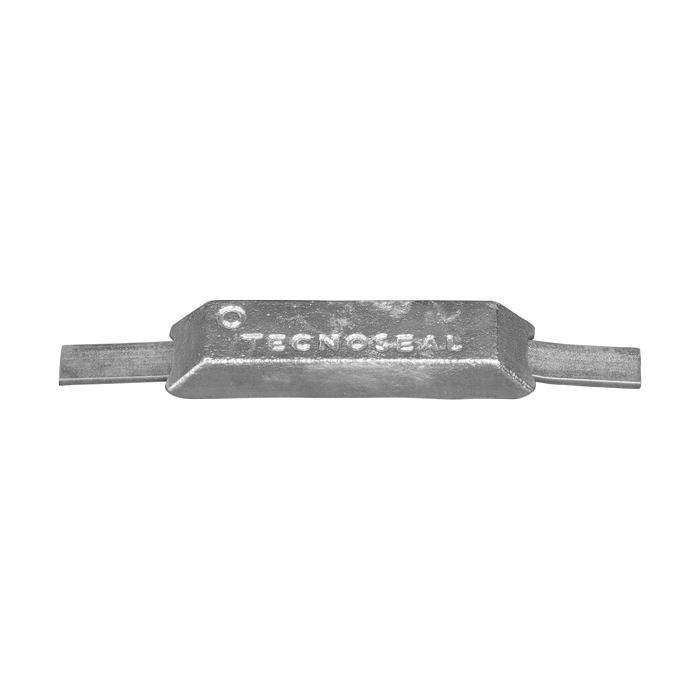

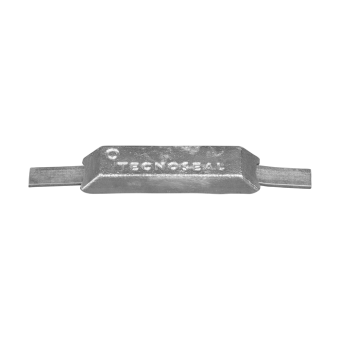

Tecnoseal Zinc Ingot Type Weld-On Sacrificial Anodes with Steel Insert – 1.60–10.00 kg
The Tecnoseal Zinc Ingot Type Weld-On Anodes are sacrificial anodes with an integrated mounting strap for hull and transom applications. The range includes four zinc models with different body dimensions, weights and strap sizes.
The standard configuration is supplied with a steel insert. Aluminium or stainless steel inserts are also available on request. Select the required version according to the anode body dimensions, weight and strap / insert dimensions.
Key Features
- Brand: Tecnoseal
- Product Type: Weld-on sacrificial anode with strap
- Type: Ingot Type
- Anode Material: Zinc
- Applications: Hull and transom
- Mounting: Weld-on
- Standard Insert: Steel
- Optional Inserts: Aluminium or stainless steel available on request
- Available Models: 00380, 00381, 00383 and 00383-1
- Weight Range: 1.60–10.00 kg
- Body Length Range: 190–310 mm
- Body Width Range: 50–140 mm
- Body Height Range: 26–35 mm
Available Models and Technical Specifications
Tecnoseal Code Weight Length (l) Width (a) Height (h) Strap / Insert 00380 1.60 kg / 1600 g 190 mm 50 mm 26 mm 300 × 25 × 5 mm 00381 2.40 kg / 2400 g 200 mm 60 mm 32 mm 300 × 25 × 5 mm 00383 8.00 kg / 8000 g 310 mm 140 mm 30 mm 400 × 30 × 6 mm 00383-1 10.00 kg / 10000 g 310 mm 140 mm 35 mm 400 × 30 × 6 mm
Tecnoseal 00380 – 1600 g
- Product Code: 00380
- Material: Zinc
- Body Dimensions: 190 × 50 × 26 mm
- Strap / Insert: 300 × 25 × 5 mm
- Weight: 1.60 kg / 1600 g
Tecnoseal 00381 – 2400 g
- Product Code: 00381
- Material: Zinc
- Body Dimensions: 200 × 60 × 32 mm
- Strap / Insert: 300 × 25 × 5 mm
- Weight: 2.40 kg / 2400 g
Tecnoseal 00383 – 8000 g
- Product Code: 00383
- Material: Zinc
- Body Dimensions: 310 × 140 × 30 mm
- Strap / Insert: 400 × 30 × 6 mm
- Weight: 8.00 kg / 8000 g
Tecnoseal 00383-1 – 10000 g
- Product Code: 00383-1
- Material: Zinc
- Body Dimensions: 310 × 140 × 35 mm
- Strap / Insert: 400 × 30 × 6 mm
- Weight: 10.00 kg / 10000 g
Dimensions for Model Selection
- l: Anode body length
- a: Anode body width
- h: Anode body height
- Strap / Insert: Integrated mounting strap dimensions
For replacement selection, compare the anode body dimensions, weight and strap / insert dimensions with the existing installation.
-
