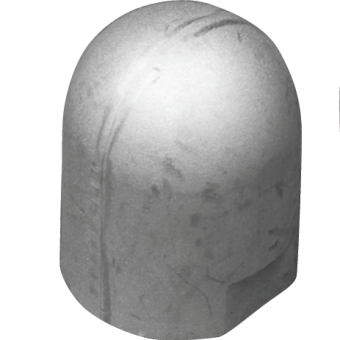

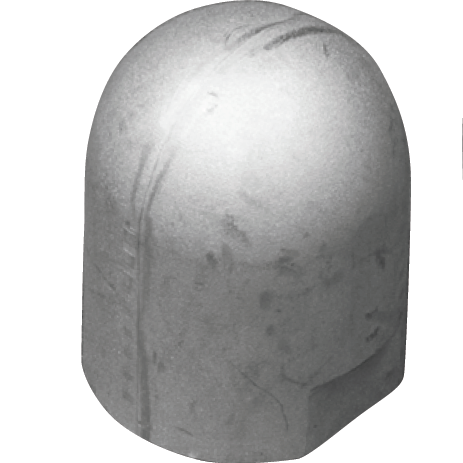

Tecnoseal Magnesium Renault Marine Propeller Nut Anodes, Shaft Ø22–50 mm

ID 1400579

$ 45.05

1-2 weeks delivery time

Shaft Diameter:

22-25
28-34
40
40-50

Size:

M20
30x1.5
M24
M27
27x1.5
M30
36x1.5
16x2
20x2.5
28x2.5

Item:

80 g
110 g
20 g
40 g
70 g

Tecnoseal magnesium Renault Marine type propeller nut anodes for shaft sizes from Ø22–25 mm up to Ø40/50 mm. The range includes thread options 16x2, 20x2.5, 28x2.5, M20, M24, M27, M30, 20x2, 26x2, 27x1.5, 30x1.5 and 36x1.5. Depending on the model, the anodes measure 36–54 mm in height and Ø27–50 mm in outside diameter, with individual weights from 0.02 to 0.11 kg. Select the required version according to shaft size and thread specification.

Description
Ask a Question

Tecnoseal Magnesium Renault Marine Propeller Nut Anodes – Shaft Ø22–50 mm

The Tecnoseal Renault Marine Propeller Nut Anodes are magnesium (MG) versions available for shaft sizes from Ø22–25 mm up to Ø40/50 mm.

Several models are designed for Ø40 mm shafts but use different internal threads, making both shaft size and thread specification important when selecting the correct version. Available threads include 16x2, 20x2.5, 28x2.5, M20, M24, M27, M30, 20x2, 26x2, 27x1.5, 30x1.5 and 36x1.5.

Key Features

Brand: Tecnoseal
Type: Renault Marine type propeller nut anode
Material: Magnesium (MG)
Shaft Size Range: Ø22–25 to Ø40/50 mm
Height Range: 36–54 mm
Outside Diameter Range: Ø27–50 mm
Weight Range: 0.02–0.11 kg

Available Magnesium Models

Tecnoseal Code	Shaft Size	Height h	Outside Ø	Thread m	Weight
01801MG	Ø22–25 mm	36 mm	Ø27 mm	16x2	0.02 kg / 20 g
01802MG	Ø28–34 mm	47 mm	Ø35 mm	20x2.5	0.04 kg / 40 g
01803MG	Ø40 mm	48 mm	Ø41 mm	28x2.5	0.07 kg / 70 g
00490MG	Ø40 mm	50 mm	Ø40 mm	M20	0.08 kg / 80 g
00491MG	Ø40 mm	50 mm	Ø40 mm	M24	0.08 kg / 80 g
00492MG	Ø40 mm	50 mm	Ø40 mm	M27	0.07 kg / 70 g
00493MG	Ø40 mm	50 mm	Ø40 mm	M30	0.07 kg / 70 g
00494MG	Ø40 mm	52 mm	Ø40 mm	20x2	0.08 kg / 80 g
00495MG	Ø40 mm	50 mm	Ø40 mm	26x2	0.07 kg / 70 g
00492-1MG	Ø40 mm	52 mm	Ø40 mm	27x1.5	0.07 kg / 70 g
00493-1MG	Ø40 mm	52 mm	Ø40 mm	30x1.5	0.07 kg / 70 g
00496MG	Ø40/50 mm	54 mm	Ø50 mm	36x1.5	0.11 kg / 110 g

Dimensions for Model Selection

Shaft Size: Compatible propeller shaft diameter
h: Overall height
Ø: Outside diameter
m: Internal thread specification
Weight: Individual magnesium anode weight

Select the required Tecnoseal magnesium Renault Marine propeller nut anode by shaft size and thread specification, then check the corresponding height and outside diameter.
