Tecnoseal Turian Zinc Propeller Anodes for San Lorenzo, Canados & Admiral

ID 1406500

$ 408.28

1-2 weeks delivery time

Size:

Item:

i110 mm / 2.65 kg
i80 mm / 2.57 kg
i110 mm / 3.00 kg
i114 mm / 2.00 kg
i105 mm / 2.12 kg
i150 mm / 3.94 kg

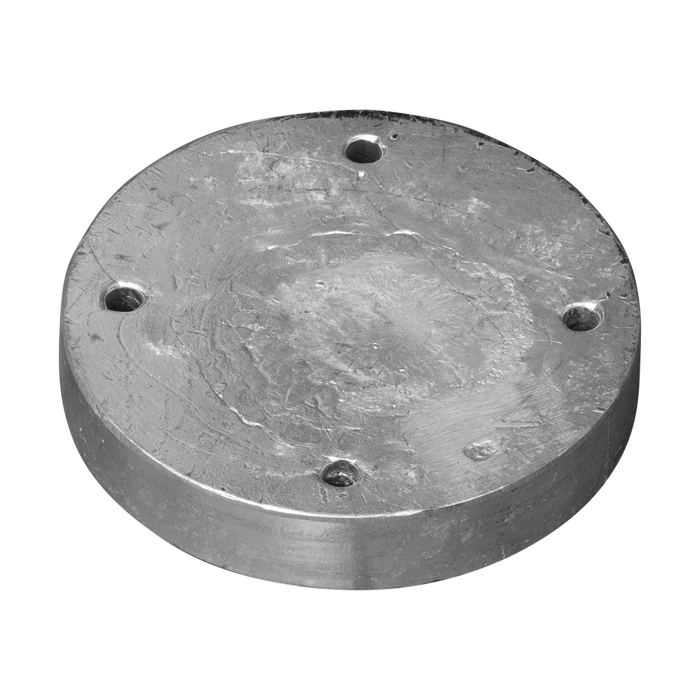

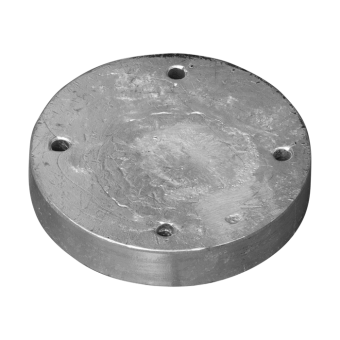

Tecnoseal Turian zinc propeller anodes are circular sacrificial anodes designed for compatible San Lorenzo, Canados and Admiral yacht propeller assemblies. The range includes six variants with outside diameters from 125 to 169 mm, heights of 21 or 25 mm and mounting hole diameters of 8.5, 10.5 or 12.5 mm. Each anode features a flat circular body with four mounting holes arranged around its circumference. The mounting dimension (i) varies from 80 to 150 mm depending on the model, while individual weights range from 2.00 to 3.94 kg. Manufactured from zinc, these anodes provide sacrificial galvanic corrosion protection for electrically connected underwater metallic propulsion components.

Description
Ask a Question

Tecnoseal 19003–19006 Turian Zinc Propeller Anodes for San Lorenzo, Canados & Admiral

The Tecnoseal Turian zinc propeller anodes are circular sacrificial anodes designed for compatible San Lorenzo, Canados and Admiral yacht propeller assemblies. Available in six configurations, they help protect electrically connected underwater metallic propulsion components against galvanic corrosion by acting as replaceable sacrificial elements.

The anodes feature a low-profile circular body with four mounting holes arranged around the circumference. Depending on the selected model, the outside diameter ranges from 125 to 169 mm, with overall heights of 21 or 25 mm. The mounting dimension (i) and hole diameters vary between versions, allowing selection according to the original propeller installation. Individual weights range from 2.00 to 3.94 kg.

Technical Specifications

Product Code Ø (mm) h (mm) i (mm) Ø1 (mm) Weight (kg)

19003 140 25 110 8.50 2.65

19003-1 140 25 80 12.50 2.57

19003-2 150 25 110 10.50 3.00

19004 134 21 114 8.50 2.00

19005 125 25 105 8.50 2.12

19006 169 25 150 8.50 3.94

Product Details
- Manufacturer: Tecnoseal
- Series: Turian
- Product Type: Sacrificial propeller anode
- Material: Zinc
- Applications: Compatible San Lorenzo, Canados and Admiral propeller assemblies
- Design: Circular plate with four mounting holes
- Outside Diameter (Ø): 125–169 mm
- Mounting Dimension (i): 80–150 mm
- Mounting Hole Diameter (Ø1): 8.50–12.50 mm
- Overall Height (h): 21–25 mm
Available Variants
- Tecnoseal 19003: Ø140 mm, height 25 mm, mounting dimension 110 mm, Ø8.50 mm holes, weight 2.65 kg.
- Tecnoseal 19003-1: Ø140 mm, height 25 mm, mounting dimension 80 mm, Ø12.50 mm holes, weight 2.57 kg.
- Tecnoseal 19003-2: Ø150 mm, height 25 mm, mounting dimension 110 mm, Ø10.50 mm holes, weight 3.00 kg.
- Tecnoseal 19004: Ø134 mm, height 21 mm, mounting dimension 114 mm, Ø8.50 mm holes, weight 2.00 kg.
- Tecnoseal 19005: Ø125 mm, height 25 mm, mounting dimension 105 mm, Ø8.50 mm holes, weight 2.12 kg.
- Tecnoseal 19006: Ø169 mm, height 25 mm, mounting dimension 150 mm, Ø8.50 mm holes, weight 3.94 kg.
Design and Mounting Configuration

The Tecnoseal Turian anodes incorporate a circular mounting configuration with four fastening holes. The manufacturer's drawing identifies the outside diameter as Ø, the overall height as h, the mounting dimension as i and the fastening hole diameter as Ø1.

Although several models share similar external dimensions, their mounting configurations differ. For example, 19003 and 19003-1 both have an outside diameter of 140 mm, but their mounting dimensions are 110 mm and 80 mm respectively, with hole diameters of 8.50 mm and 12.50 mm.

Before ordering, compare the outside diameter, mounting hole dimensions and hole spacing with the existing anode. The correct mounting configuration is essential for matching the replacement component to the original propeller installation.

Corrosion Protection and Maintenance

Manufactured from zinc, these sacrificial anodes are designed to corrode preferentially, helping protect electrically connected underwater metallic propulsion components from galvanic corrosion. As the sacrificial material is consumed during service, regular inspection and replacement are important parts of routine vessel maintenance.

During installation, ensure suitable electrical contact with the metallic component requiring protection. Inspect mounting surfaces for coatings or contamination that could interfere with electrical continuity.

Scope of Supply

One Tecnoseal Turian zinc propeller anode in the selected size and mounting configuration.
