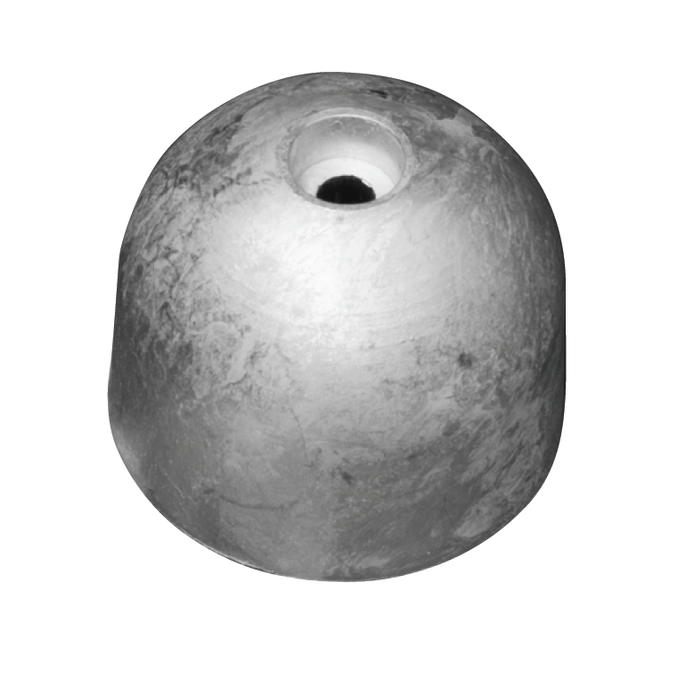

Tecnoseal BCS Thruster Propeller Anode Ø50 × H35 mm

ID 1399944

$ 116.01

1-2 weeks delivery time

Type:

Zinc
Aluminium

The Tecnoseal 02481 Series is a BCS propeller anode available in Zinc 02481 and Aluminium 02481AL versions. Both variants share the same dimensions: a = 25 mm, h = 35 mm, h1 = 20 mm, h2 = 3 mm, Ø = 50 mm, Ø1 = 40 mm and Ø2 = 6 mm. The Zinc version weighs 0.22 kg (0.49 lbs), while the Aluminium version weighs 0.09 kg (0.20 lbs).

Description
Ask a Question

Tecnoseal 02481 Series BCS Propeller Anode Ø50 × H35 mm – Zinc / Aluminium

The Tecnoseal 02481 Series consists of BCS propeller anodes available in Zinc and Aluminium versions.

Both variants share the same dimensions: a = 25 mm, h = 35 mm, h1 = 20 mm, h2 = 3 mm, Ø = 50 mm, Ø1 = 40 mm and Ø2 = 6 mm. The weight differs according to the anode material.

Technical Specifications

Product Code	Material	Weight	a	h	h1	h2	Ø	Ø1	Ø2
02481 / Osculati 43.070.33	Zinc	0.22 kg (0.49 lbs)	25 mm (0.98")	35 mm (1.38")	20 mm (0.79")	3 mm (0.12")	50 mm (1.97")	40 mm (1.57")	6 mm (0.24")
02481AL / Osculati 43.070.34	Aluminium	0.09 kg (0.20 lbs)	25 mm (0.98")	35 mm (1.38")	20 mm (0.79")	3 mm (0.12")	50 mm (1.97")	40 mm (1.57")	6 mm (0.24")

Product Variants

02481: Zinc, 0.22 kg (0.49 lbs)
02481AL: Aluminium, 0.09 kg (0.20 lbs)
