ID
1399940
$ 55.18
1-2 weeks delivery time
Type:
- Zinc
- Aluminium

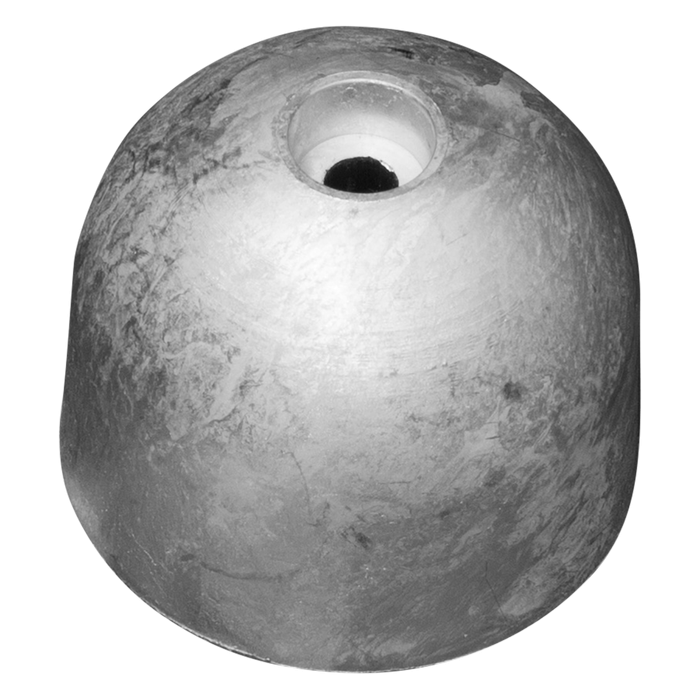

The Tecnoseal 02480 Series is a Side-Power / Sleipner propeller nut anode for SE130/170 and SP240/285, corresponding to original part number 201180. It is available in Zinc 02480 and Aluminium 02480AL versions. Both variants share the same dimensions: a = 24 mm, h = 42 mm, Ø = 49 mm, Ø1 = 6 mm and Ø2 = 33 mm. The Zinc version weighs 0.34 kg (0.75 lbs), while the Aluminium version weighs 0.13 kg (0.29 lbs).
- Description
- Ask a Question
-

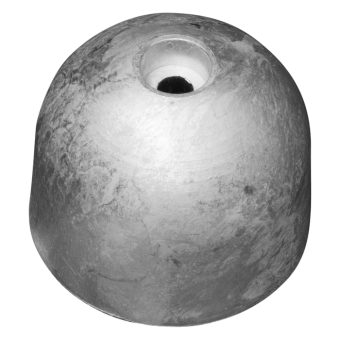

Tecnoseal 02480 Series Side-Power / Sleipner Propeller Nut Anode for SE130/170 & SP240/285 – Zinc / Aluminium – 201180
The Tecnoseal 02480 Series consists of Side-Power / Sleipner propeller nut anodes designed for SE130/170 and SP240/285 applications. The corresponding original part number is 201180.
The series is available in Zinc and Aluminium versions. Both variants share the same dimensions: a = 24 mm, h = 42 mm, Ø = 49 mm, Ø1 = 6 mm and Ø2 = 33 mm. The weight differs according to the anode material.
Technical Specifications
Product Code Material Weight a h Ø Ø1 Ø2 02480 (Osculati 43.070.31) Zinc 0.34 kg (0.75 lbs) 24 mm (0.94") 42 mm (1.65") 49 mm (1.93") 6 mm (0.24") 33 mm (1.30") 02480AL (Osculati 43.070.32) Aluminium 0.13 kg (0.29 lbs) 24 mm (0.94") 42 mm (1.65") 49 mm (1.93") 6 mm (0.24") 33 mm (1.30")
Application and Reference
- Application: Side-Power / Sleipner SE130/170, SP240/285
- Original Part Number: 201180
- Available Materials: Zinc and Aluminium
-
