Tecnoseal Aluminium Solé Diesel Propeller Anodes, Shaft Ø25–50 mm

ID 1400647

$ 16.29

1-2 weeks delivery time

Shaft Diameter:

25
30
35-40
45-50

Item:

80 g
150 g
50 g
220 g

Tecnoseal aluminium propeller anodes for Solé Diesel installations, available for shaft sizes Ø25, Ø30, Ø35–40 and Ø45–50 mm. Depending on the model, the anodes measure Ø32–55 mm in outside diameter and 39–70 mm in height, with individual weights from 0.05 to 0.22 kg. Corresponding Solé original part numbers are 40025092, 40030092, 40035092 and 40045092. Select the required version according to shaft diameter and matching anode dimensions.

Description
Ask a Question

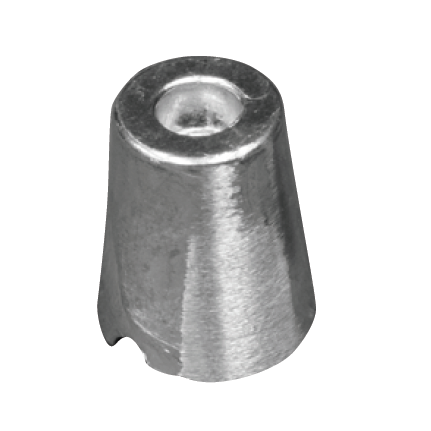

Tecnoseal Aluminium Solé Diesel Propeller Anodes – Shaft Ø25–50 mm

The Tecnoseal Solé Diesel Propeller Anodes are aluminium (AL) anodes available for propeller shaft sizes from Ø25 to Ø50 mm.

The range includes four models for Ø25 mm, Ø30 mm, Ø35–40 mm and Ø45–50 mm shafts. Each version has its own outside diameter, height, Ø1 dimension and weight, together with the corresponding Solé original part number.

Key Features

Brand: Tecnoseal
Application: Solé Diesel propeller installations
Product Type: Propeller anode
Material: Aluminium (AL)
Shaft Size Range: Ø25–50 mm
Outside Diameter Range: Ø32–55 mm
Height Range: 39–70 mm
Weight Range: 0.05–0.22 kg

Available Models and Technical Specifications

Tecnoseal Code	Solé Original Part No.	Shaft Size	Weight	Height h	Outside Ø	Ø1
00400SOLE-1AL	40025092	Ø25 mm	0.05 kg / 50 g	39 mm	Ø32 mm	24 mm
00400SOLE-2AL	40030092	Ø30 mm	0.08 kg / 80 g	46 mm	Ø37 mm	26 mm
00400SOLE-3AL	40035092	Ø35–40 mm	0.15 kg / 150 g	60 mm	Ø47 mm	36 mm
00400SOLE-4AL	40045092	Ø45–50 mm	0.22 kg / 220 g	70 mm	Ø55 mm	45 mm

Model Selection

Shaft Size: Select Ø25, Ø30, Ø35–40 or Ø45–50 mm
h: Overall anode height
Ø: Outside anode diameter
Ø1: Internal diameter shown in the Tecnoseal drawing
Original Part Number: Corresponding Solé reference

Select the required Tecnoseal aluminium Solé Diesel propeller anode according to shaft diameter, then verify the outside diameter, height and Ø1 dimension against the existing installation.
