Tecnoseal Zinc Dufour Shaft Ring Anodes Ø47–55 mm

ID 1400549

$ 85.50

1-2 weeks delivery time

Size:

Ø47x12
Ø52x14
Ø55x18

Item:

140 g
90 g
180 g

Tecnoseal zinc Dufour shaft ring anodes available in three sizes with outside diameters of Ø47, Ø52 and Ø55 mm. Depending on the model, height h ranges from 12 to 18 mm, dimension i from 37 to 43 mm and Ø1 from 27 to 32 mm, while all versions share Ø2 6.5 mm and Ø3 10 mm dimensions. Individual weights are 0.09, 0.14 and 0.18 kg. Select the required version according to outside diameter, height and the detailed mounting dimensions.

Description
Ask a Question

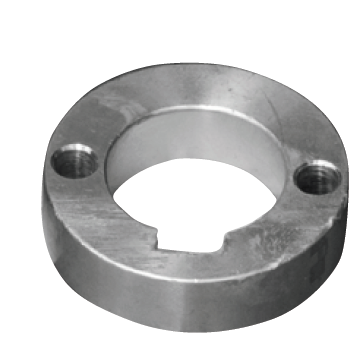

Tecnoseal Zinc Dufour Shaft Ring Anodes – Ø47–55 mm

The Tecnoseal Dufour Shaft Ring Anodes are zinc (ZN) ring-type anodes available in three dimensional configurations. The range includes outside diameters of Ø47, Ø52 and Ø55 mm.

Each model is defined by dimensions h, i, Ø, Ø1, Ø2 and Ø3. According to the Tecnoseal catalogue, all three versions use Ø2 6.5 mm and Ø3 10 mm dimensions, while the remaining dimensions vary by model.

Key Features

Brand: Tecnoseal
Product Type: Dufour shaft ring anode
Material: Zinc (ZN)
Outside Diameter Range: Ø47–55 mm
Height Range: 12–18 mm
Weight Range: 0.09–0.18 kg

Available Models and Technical Specifications

Tecnoseal Code	Weight	h	i	Outside Ø	Ø1	Ø2	Ø3
01700	0.09 kg / 90 g	12 mm	37 mm	Ø47 mm	27 mm	6.5 mm	10 mm
01701	0.14 kg / 140 g	14 mm	40 mm	Ø52 mm	28 mm	6.5 mm	10 mm
01702	0.18 kg / 180 g	18 mm	43 mm	Ø55 mm	32 mm	6.5 mm	10 mm

Dimensions for Model Selection

h: Anode height
i: Internal catalogue dimension
Ø: Overall outside diameter
Ø1: Catalogue diameter dimension
Ø2: 6.5 mm
Ø3: 10 mm

Select the required Tecnoseal Dufour shaft ring anode according to outside diameter, height and the corresponding i, Ø1, Ø2 and Ø3 dimensions.
