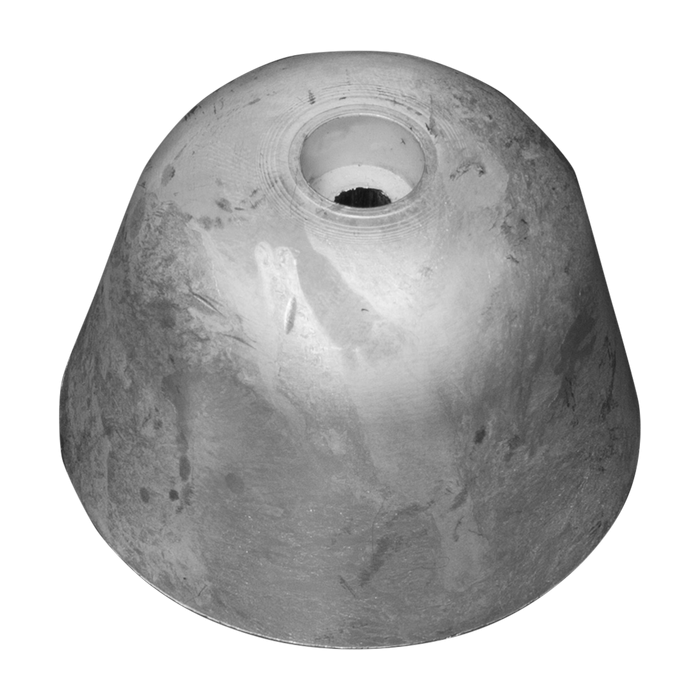

The Tecnoseal 03702 is a zinc Craftsman Marine propeller nut anode for 80, 95 and 115 kgf thruster applications, corresponding to original part number BA.185.90007. It weighs 0.15 kg (0.33 lbs) and measures 52 mm in overall diameter and 32 mm in height, with additional dimensions of a = 17.50 mm, h1 = 17 mm, Ø1 = 10.50 mm, Ø2 = 27 mm and Ø3 = 6 mm.
- Description
- Ask a Question
-

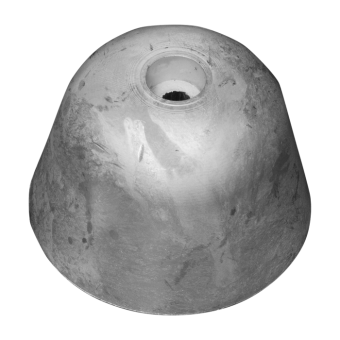

Tecnoseal 03702 Zinc Craftsman Marine Propeller Nut Anode for 80/95/115 kgf Thrusters – BA.185.90007
The Tecnoseal 03702 is a zinc Craftsman Marine propeller nut anode designed for 80, 95 and 115 kgf thruster applications. The corresponding original part number is BA.185.90007.
The anode weighs 0.15 kg (0.33 lbs) and has an overall diameter of 52 mm with a height of 32 mm. Its additional dimensions are a = 17.50 mm, h1 = 17 mm, Ø1 = 10.50 mm, Ø2 = 27 mm and Ø3 = 6 mm.
Technical Specifications
Product Code 03702 Material Zinc Weight 0.15 kg (0.33 lbs) Dimension (a) 17.50 mm (0.69") Height (h) 32 mm (1.26") Dimension (h1) 17 mm (0.67") Overall Diameter (Ø) 52 mm (2.05") Ø1 10.50 mm (0.41") Ø2 27 mm (1.06") Ø3 6 mm (0.24")
Application and Reference
- Application: Craftsman Marine 80 / 95 / 115 kgf thrusters
- Original Part Number: BA.185.90007
-
