ID
1399893
$ 46.61
1-2 weeks delivery time
-
+
The Tecnoseal 03700 is a zinc Craftsman Marine propeller nut anode for 35 kgf thruster applications, corresponding to original part number BA.110.90007. It weighs 0.07 kg (0.15 lbs) and measures 37 mm in overall diameter and 20 mm in height, with additional dimensions of a = 17.50 mm, h1 = 10 mm, Ø1 = 10.50 mm, Ø2 = 25 mm and Ø3 = 5.50 mm.
- Description
- Ask a Question
-
Tecnoseal 03700 Zinc Craftsman Marine Propeller Nut Anode for 35 kgf Thruster – BA.110.90007

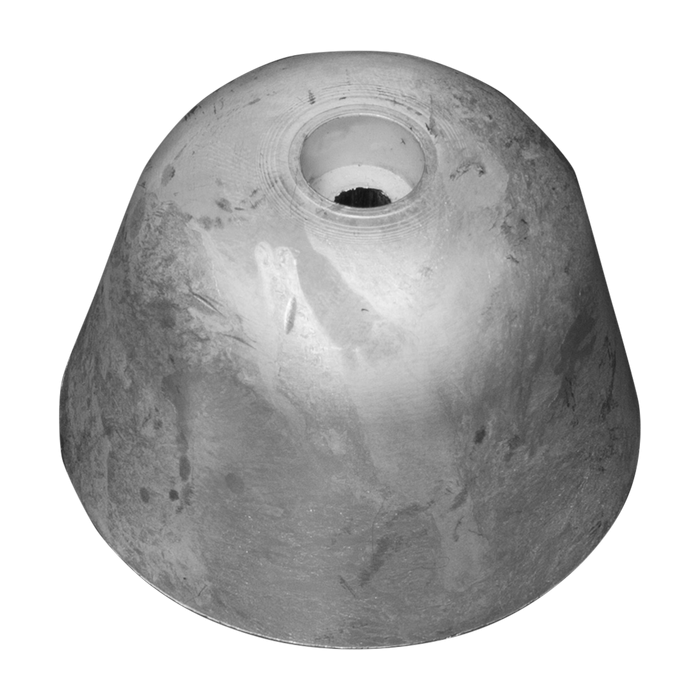

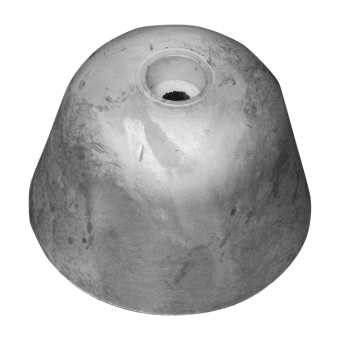

The Tecnoseal 03700 is a zinc Craftsman Marine propeller nut anode designed for 35 kgf thruster applications. The corresponding original part number is BA.110.90007.
The anode weighs 0.07 kg (0.15 lbs) and has an overall diameter of 37 mm with a height of 20 mm. Its additional dimensions are a = 17.50 mm, h1 = 10 mm, Ø1 = 10.50 mm, Ø2 = 25 mm and Ø3 = 5.50 mm.
Technical Specifications
Product Code 03700 Material Zinc Weight 0.07 kg (0.15 lbs) Dimension (a) 17.50 mm (0.69") Height (h) 20 mm (0.79") Dimension (h1) 10 mm (0.39") Overall Diameter (Ø) 37 mm (1.46") Ø1 10.50 mm (0.41") Ø2 25 mm (0.98") Ø3 5.50 mm (0.22")
Application and Reference
- Application: Craftsman Marine 35 kgf thruster
- Original Part Number: BA.110.90007
-
