ID
1399896
$ 69.79
1-2 weeks delivery time
-
+
The Tecnoseal 03703 is a zinc Craftsman Marine propeller nut anode for 125, 150 and 170 kgf thruster applications, corresponding to original part number BA.250.90007. It weighs 0.44 kg (0.97 lbs) and measures 60 mm in overall diameter and 41 mm in height, with additional dimensions of a = 24.50 mm, h1 = 22 mm, Ø1 = 11.50 mm, Ø2 = 34 mm and Ø3 = 6.50 mm.
- Description
- Ask a Question
-

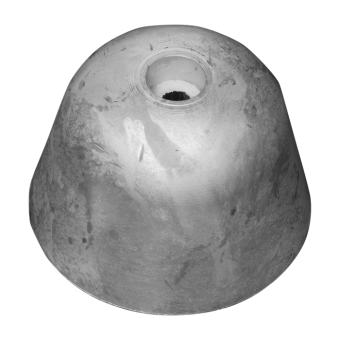

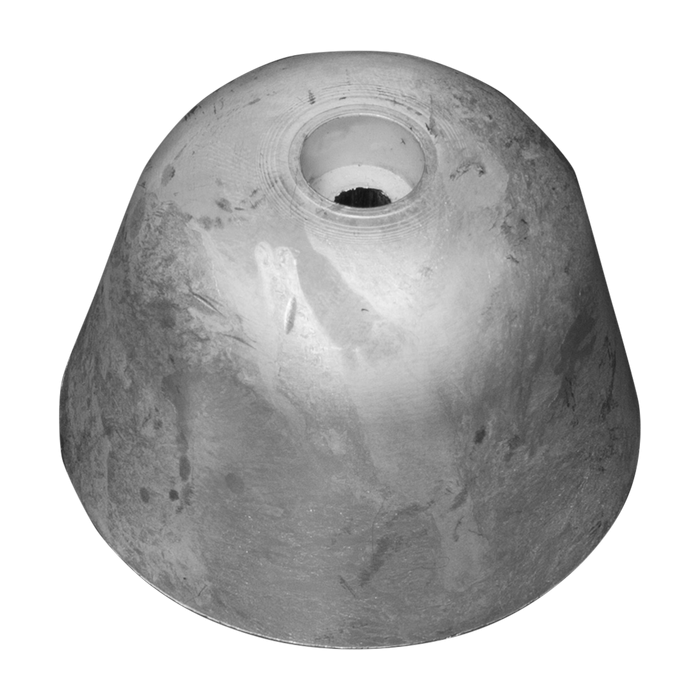

Tecnoseal 03703 Zinc Craftsman Marine Propeller Nut Anode for 125/150/170 kgf Thrusters – BA.250.90007
The Tecnoseal 03703 is a zinc Craftsman Marine propeller nut anode designed for 125, 150 and 170 kgf thruster applications. The corresponding original part number is BA.250.90007.
The anode weighs 0.44 kg (0.97 lbs) and has an overall diameter of 60 mm with a height of 41 mm. Its additional dimensions are a = 24.50 mm, h1 = 22 mm, Ø1 = 11.50 mm, Ø2 = 34 mm and Ø3 = 6.50 mm.
Technical Specifications
Product Code 03703 Material Zinc Weight 0.44 kg (0.97 lbs) Dimension (a) 24.50 mm (0.96") Height (h) 41 mm (1.61") Dimension (h1) 22 mm (0.87") Overall Diameter (Ø) 60 mm (2.36") Ø1 11.50 mm (0.45") Ø2 34 mm (1.34") Ø3 6.50 mm (0.26")
Application and Reference
- Application: Craftsman Marine 125 / 150 / 170 kgf thrusters
- Original Part Number: BA.250.90007
-
