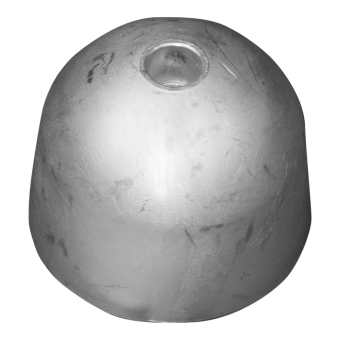

Tecnoseal BCS Thruster Conical Propeller Anode with Stainless Steel Insert Ø68 × H55 mm

ID 1399863

$ 60.84

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

The Tecnoseal 03501 Series is a BCS conical propeller anode with stainless steel insert, available in Zinc, Aluminium and Magnesium versions. All variants have the same dimensions: 55 mm height, Ø68 mm overall diameter, Ø56 mm base diameter and Ø6.50 mm central diameter. The material variants differ in weight: Zinc 03501 – 0.64 kg, Aluminium 03501AL – 0.26 kg, and Magnesium 03501MG – 0.16 kg.

Description
Ask a Question

Tecnoseal 03501 Series BCS Conical Propeller Anode with Stainless Steel Insert Ø68 × H55 mm

The Tecnoseal 03501 Series consists of BCS conical propeller anodes with a stainless steel insert. The series is available in three material versions: Zinc, Aluminium and Magnesium.

All three variants share the same external dimensions, with a height of 55 mm, an overall diameter of 68 mm, Ø1 diameter of 56 mm and Ø2 diameter of 6.50 mm. The weight varies according to the anode material.

Technical Specifications

Product Code	Material	Weight	Height (h)	Diameter (Ø)	Ø1	Ø2
03501	Zinc	0.64 kg (1.41 lbs)	55 mm (2.17")	68 mm (2.68")	56 mm (2.20")	6.50 mm (0.26")
03501AL	Aluminium	0.26 kg (0.57 lbs)	55 mm (2.17")	68 mm (2.68")	56 mm (2.20")	6.50 mm (0.26")
03501MG	Magnesium	0.16 kg (0.35 lbs)	55 mm (2.17")	68 mm (2.68")	56 mm (2.20")	6.50 mm (0.26")

Common Dimensions

Height (h): 55 mm (2.17")
Overall Diameter (Ø): 68 mm (2.68")
Diameter Ø1: 56 mm (2.20")
Diameter Ø2: 6.50 mm (0.26")
Insert: Stainless steel
Available Materials: Zinc, Aluminium, Magnesium
