ID
1215369
$ 225.51
1-2 weeks delivery time
-
+

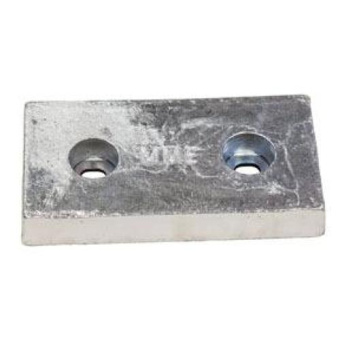

The MME MME130ZB Zinc Hull and Rudder Anode is designed to provide sacrificial corrosion protection for marine hull and rudder components. Manufactured from zinc, it features a rectangular body measuring 300 × 150 × 50 mm with two recessed mounting holes. The specified anode strip length is 160 mm. Designed for marine applications, the anode helps protect metal components against corrosion. Product number MME130ZB, EAN 8720193041216. Supplied individually.
- Description
- Ask a Question
-
MME MME130ZB Rectangular Zinc Hull and Rudder Anode – 300 × 150 × 50 mm
The MME MME130ZB Zinc Hull and Rudder Anode is a sacrificial anode designed to protect marine hull and rudder components against corrosion. Manufactured from zinc, it features a rectangular body with two recessed mounting holes.
The anode measures 300 mm in length, 150 mm in width and 50 mm in height. The specified anode strip length is 160 mm. It is intended for marine applications where sacrificial corrosion protection of metal components is required.
Key Features
- Brand: MME
- Model: MME130ZB
- Product Type: Sacrificial hull and rudder anode
- Material: Zinc
- Shape: Rectangular
- Application: Boat hulls and rudders
- Mounting Arrangement: Two recessed mounting holes
- Function: Sacrificial corrosion protection for marine metal components
- Body Dimensions: 300 × 150 × 50 mm
- Specified Anode Strip Length: 160 mm
- Sales Unit: 1 piece
Technical Specifications
Specification Value Brand MME Product Number MME130ZB Material Zinc Shape Rectangular Product Length 300 mm Product Width 150 mm Product Height 50 mm Specified Anode Strip Length 160 mm Mounting Arrangement Two recessed holes Sales Unit 1 piece EAN Code 8720193041216

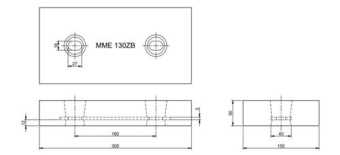

Construction and Mounting
The MME130ZB features a rectangular zinc body with two recessed mounting holes. The mounting arrangement allows the anode to be positioned on the required hull or rudder installation.
- Anode Body: Rectangular zinc construction.
- Body Length: 300 mm.
- Body Width: 150 mm.
- Body Height: 50 mm.
- Mounting Holes: Two recessed openings.
- Specified Anode Strip Length: 160 mm.
The mounting hole dimensions and spacing should be checked against the existing installation before selecting a replacement anode.
Corrosion Protection
The zinc anode functions as a sacrificial component, corroding preferentially to help protect other metal components of the vessel against corrosion.
The MME130ZB is designed for hull and rudder applications where sacrificial corrosion protection is required.
Product Identification
- Brand: MME
- Model: MME130ZB
- Product Number: MME130ZB
- EAN Code: 8720193041216
- Sales Unit: 1 piece
-
