MME Aluminium Teardrop Weld-On Hull & Rudder Anodes with Aluminium Strip

ID 1398780

$ 36.40

1-2 weeks delivery time

Size:

180x60x32
220x75x38
200x95x30
200x40x25

The MME Aluminium Teardrop Weld-On Anode is designed for sacrificial corrosion protection of aluminium boat hulls and rudders. It features an aluminium anode body with an aluminium mounting strip for welded installation on aluminium structures. Available in four models with body dimensions of 200 × 40 × 25 mm (MME02AA), 180 × 60 × 32 mm (MME04AA), 220 × 75 × 38 mm (MME08AA) and 200 × 95 × 30 mm (MME12AA). Mounting strip lengths range from 200 to 300 mm, depending on the model. Each anode is supplied individually.

Description
Ask a Question

MME Aluminium Teardrop Weld-On Hull and Rudder Anodes with Aluminium Strip – 180–220 mm

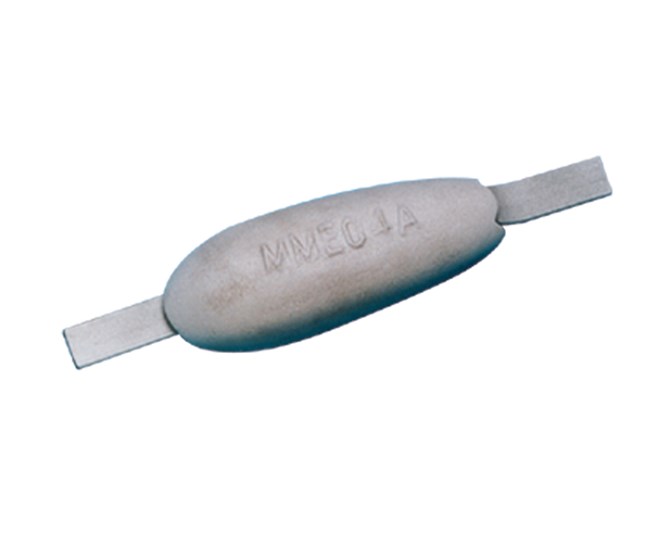

The MME Aluminium Teardrop Weld-On Anodes are designed to provide sacrificial corrosion protection for aluminium boat hulls and rudders. Each anode features an aluminium body with an aluminium mounting strip intended for welded installation on aluminium structures.

The range includes four models: MME02AA, MME04AA, MME08AA and MME12AA. They feature teardrop-shaped aluminium bodies with different dimensions and mounting strip configurations.

Key Features

Brand: MME
Product Type: Sacrificial hull and rudder anode
Anode Material: Aluminium
Mounting Strip Material: Aluminium
Shape: Teardrop
Installation Type: Weld-on
Suitable Hull Material: Aluminium
Application: Boat hulls and rudders
Body Length Range: 180–220 mm
Body Width Range: 40–95 mm
Body Height Range: 25–38 mm
Mounting Strip Length: 200–300 mm
Available Models: MME02AA, MME04AA, MME08AA and MME12AA
Sales Unit: 1 piece

Technical Specifications and Available Models

The following table provides the dimensions and mounting strip specifications for each model. All dimensions are specified in millimetres.

Product No.	Model	Body L (mm)	Body W (mm)	Body H (mm)	Strip L (mm)	Strip B (mm)	Strip D (mm)
1725	MME02AA	200	40	25	200	10	3
1726	MME04AA	180	60	32	260	20	3
1727	MME08AA	220	75	38	300	20	3
MME12AA	MME12AA	200	95	30	300	Not specified	Not specified

Construction and Mounting

The MME anodes combine a teardrop-shaped aluminium body with an extended aluminium mounting strip. The strip is intended for welded attachment to aluminium hulls and other aluminium structures.

The mounting strip dimensions vary according to the selected model:

MME02AA: 200 × 10 × 3 mm.
MME04AA: 260 × 20 × 3 mm.
MME08AA: 300 × 20 × 3 mm.
MME12AA: 300 mm strip length. Width and thickness are not specified in the supplied product description.

Dimensions and Model Selection

The four variants feature different body dimensions and mounting strip lengths. Body dimensions are specified as length × width × height.

MME02AA (1725): 200 × 40 × 25 mm aluminium body with a 200 mm mounting strip.
MME04AA (1726): 180 × 60 × 32 mm aluminium body with a 260 mm mounting strip.
MME08AA (1727): 220 × 75 × 38 mm aluminium body with a 300 mm mounting strip.
MME12AA: 200 × 95 × 30 mm aluminium body with a 300 mm mounting strip.

When selecting an anode, compare the body dimensions and mounting strip specifications with the required installation dimensions.

Application and Corrosion Protection

The aluminium anode acts as a sacrificial component, corroding preferentially to help protect connected metal components of the vessel against corrosion.

The models in this range feature aluminium mounting strips intended for installation on aluminium hulls and rudders.

Product Identification

Model	Product Number	EAN Code
MME02AA	1725	8720193040783
MME04AA	1726	8720193040790
MME08AA	1727	8720193040806
MME12AA	MME12AA	8720193041209

Sales Unit: 1 piece.
