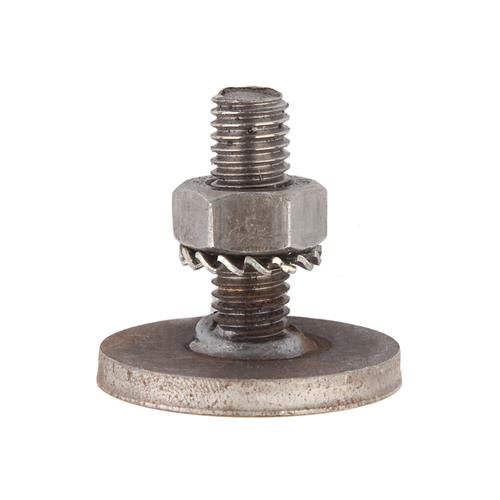

MG Duff M10C / M16C Stainless Steel 316 Anode Stud Assemblies

ID 1398973

$ 15.43

1-2 weeks delivery time

Type:

The MG Duff Stainless Steel 316 Stud Assemblies are designed for mounting sacrificial anodes on steel vessels. Available in M10C and M16C versions with M10 and M16 threaded studs respectively, both assemblies feature fully welded construction and an uncoated, paint-ready finish. Each assembly is supplied complete with nuts and washers. The M16C has a specified length of 40 mm. Manufactured from AISI 316 stainless steel for corrosion resistance in marine applications, these mounting assemblies are supplied individually.

Description
Ask a Question

MG Duff M10C / M16C Stainless Steel 316 Anode Stud Assemblies – Complete with Nuts and Washers

The MG Duff Stainless Steel 316 Stud Assemblies are designed for mounting sacrificial anodes on steel vessels. Manufactured from stainless steel 316, these assemblies feature threaded studs, a fully welded construction and an uncoated finish ready for painting.

The range includes two versions: M10C with an M10 threaded stud and M16C with an M16 threaded stud. Both models are supplied complete with nuts and washers for anode installation.

Key Features

Brand: MG Duff
Product Type: Complete anode stud assembly
Material: Stainless Steel 316 (AISI 316)
Available Models: M10C and M16C
Thread Sizes: M10 and M16
Construction: Fully welded
Finish: Uncoated, ready for painting
Included Components: Nuts and washers
Application: Anode mounting on steel vessels
Sales Unit: 1 complete assembly

Technical Specifications and Available Models

The MG Duff stud assembly range includes two models with different thread sizes. Both versions are manufactured from stainless steel 316 and supplied complete with nuts and washers.

Specification	M10C	M16C
Brand	MG Duff	MG Duff
Product Number	M10C	M16C
Material	Stainless Steel 316	Stainless Steel 316
Thread Size	M10	M16
Product Length	To be confirmed	40 mm
Construction	Fully welded	Fully welded
Finish	Uncoated, paint-ready	Uncoated, paint-ready
Included Components	Nuts and washers	Nuts and washers
Application	Steel vessels	Steel vessels
Sales Unit	1 assembly	1 assembly

Stainless Steel Construction

The assemblies are manufactured from stainless steel 316 for corrosion resistance in marine environments. Both versions feature a fully welded construction and threaded connections for securing sacrificial anodes.

Material Grade: Stainless Steel 316.
M10C: M10 threaded stud assembly.
M16C: M16 threaded stud assembly.
Surface Finish: Uncoated and ready for painting.

Complete Mounting Assembly

Both MG Duff stud assemblies are supplied complete with nuts and washers, providing the components specified for the anode mounting arrangement.

The assemblies are suitable for use on steel vessels. Their uncoated finish allows painting as required for the installation.

Model Selection

Select the stud assembly according to the required threaded connection:

MG Duff M10C: Complete stainless steel 316 stud assembly with M10 threaded connection, nuts and washers.
MG Duff M16C: Complete stainless steel 316 stud assembly with M16 threaded connection, 40 mm specified length, nuts and washers.

Before ordering, verify the required thread size and mounting dimensions against the existing anode installation.

Product Identification

Product Number	Thread Size	EAN Code
M10C	M10	5060333960414
M16C	M16	5060333960445

Sales Unit: 1 complete stud assembly with nuts and washers.
