MME Rectangular Zinc Hull & Rudder Anodes

ID 1398825

$ 208.11

1-2 weeks delivery time

Size:

457x102x64
305x68x38
305x88x38
450x102x40
430x102x64
315x70x40
320x72x44
457x102x64 One Rounded End

The MME Rectangular Zinc Hull and Rudder Anodes are designed to provide sacrificial corrosion protection for boat hulls and rudders in marine environments. The range includes eight models with zinc bodies measuring 305–457 mm in length, 68–102 mm in width and 38–64 mm in height. Available variants include MME24ZBS (315 × 70 × 40 mm) with a specified bolt spacing of 120–200 mm, MME30ZB (305 × 68 × 38 mm), MME33ZB (320 × 72 × 44 mm), MME40ZB (305 × 88 × 38 mm), MME70ZB (450 × 102 × 40 mm), MME120ZB and MME124ZB (457 × 102 × 64 mm), and MME134ZB (430 × 102 × 64 mm). The models differ in body dimensions and specified mounting parameters. Each anode is supplied individually.

Description
Ask a Question

MME Rectangular Zinc Hull and Rudder Anodes – 305–457 mm

The MME Rectangular Zinc Hull and Rudder Anodes are designed to provide sacrificial corrosion protection for boat hulls, rudders and underwater metal components. Manufactured from zinc, these anodes are available in eight models with different body dimensions and specified mounting parameters.

The range includes MME24ZBS, MME30ZB, MME33ZB, MME40ZB, MME70ZB, MME120ZB, MME124ZB and MME134ZB. Body lengths range from 305 to 457 mm, widths from 68 to 102 mm and heights from 38 to 64 mm. Each model is supplied as a single piece.

Key Features

Brand: MME
Product Type: Sacrificial hull and rudder anode
Material: Zinc
Shape: Rectangular
Application: Boat hulls and rudders
Function: Sacrificial corrosion protection for marine metal components
Body Length Range: 305–457 mm
Body Width Range: 68–102 mm
Body Height Range: 38–64 mm
Available Models: MME24ZBS, MME30ZB, MME33ZB, MME40ZB, MME70ZB, MME120ZB, MME124ZB and MME134ZB
Sales Unit: 1 piece

Technical Specifications and Available Models

The MME zinc anode range includes eight rectangular models with different body dimensions. All dimensions are specified in millimetres.

Product Number	Length (mm)	Width (mm)	Height (mm)
MME24ZBS	315	70	40
MME30ZB	305	68	38
MME33ZB	320	72	44
MME40ZB	305	88	38
MME70ZB	450	102	40
MME120ZB	457	102	64
MME124ZB	457	102	64
MME134ZB	430	102	64

Construction and Mounting Specifications

The MME anodes feature rectangular zinc bodies intended for hull and rudder corrosion protection. Certain models have additional mounting dimensions specified in their product descriptions.

MME24ZBS: Specified bolt spacing of 120–200 mm.
MME30ZB: Specified anode strip length of 200 mm.
MME33ZB: Specified anode strip length of 155 mm.
MME40ZB: Specified anode strip length of 200 mm.
MME120ZB: Specified anode strip length of 229 mm.
MME134ZB: Specified anode strip length of 229 mm.

Complete mounting dimensions have not been confirmed for all models. The stated strip lengths should not be interpreted as mounting hole spacing without confirmation.

When selecting a replacement anode, compare the body dimensions and available mounting specifications with the existing installation.

Dimensions and Model Selection

The range includes eight product variants. Body dimensions are specified as length × width × height.

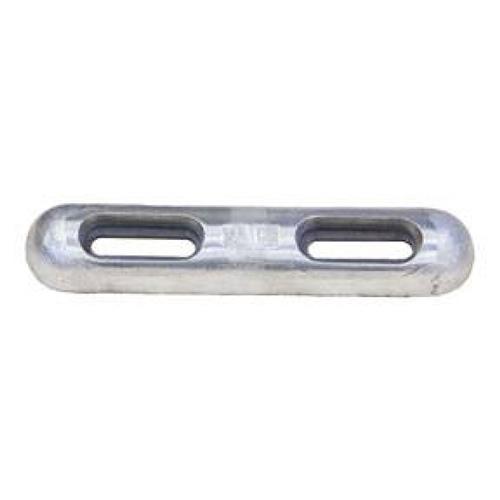

MME24ZBS: Rectangular zinc anode measuring 315 × 70 × 40 mm, with specified bolt spacing of 120–200 mm.
MME30ZB: Rectangular zinc anode measuring 305 × 68 × 38 mm, with a specified anode strip length of 200 mm.
MME33ZB: Rectangular zinc anode measuring 320 × 72 × 44 mm, with a specified anode strip length of 155 mm.
MME40ZB: Rectangular zinc anode measuring 305 × 88 × 38 mm, with a specified anode strip length of 200 mm.
MME70ZB: Rectangular zinc anode measuring 450 × 102 × 40 mm.
MME120ZB: Rectangular zinc anode measuring 457 × 102 × 64 mm, with a specified anode strip length of 229 mm.
MME124ZB: Rectangular zinc anode measuring 457 × 102 × 64 mm.
MME134ZB: Rectangular zinc anode measuring 430 × 102 × 64 mm, with a specified anode strip length of 229 mm.

The MME30ZB and MME40ZB share the same body length of 305 mm and height of 38 mm but differ in width. The MME30ZB measures 68 mm in width, while the MME40ZB measures 88 mm.

The MME120ZB and MME124ZB have identical stated body dimensions of 457 × 102 × 64 mm. They have different product numbers and EAN codes, and their technical differences are not fully specified in the available product information.

The MME134ZB has the same body width and height as the MME120ZB and MME124ZB but a shorter body length of 430 mm.

When selecting an anode, compare the dimensions, product number and mounting requirements with the existing installation.

Corrosion Protection and Application

The MME zinc anodes function as sacrificial components, corroding preferentially to help protect other metal components of the vessel against galvanic corrosion.

The range is designed for hull and rudder applications. Different body dimensions and specified mounting parameters allow selection according to the required installation configuration.

Product Identification

The following table lists the manufacturer product numbers and corresponding EAN codes for all eight variants.

Product Number	EAN Code
MME24ZBS	8720193041575
MME30ZB	8720193041742
MME33ZB	8720193041797
MME40ZB	8720193041865
MME70ZB	8720193042114
MME120ZB	8720193041131
MME124ZB	8720193041193
MME134ZB	8720193041223

Sales Unit: 1 zinc hull and rudder anode.
