MME Aluminium Rectangular Weld-On Hull & Rudder Anodes with Steel Strip

ID 1398755

$ 46.34

1-2 weeks delivery time

Size:

290x100x40
270x150x33

The MME Aluminium Rectangular Weld-On Anode is designed for sacrificial corrosion protection of steel boat hulls and rudders. It combines a rectangular aluminium anode body with an extended steel mounting strip for welded installation on steel hulls. Available in two models: MME17A (290 × 100 × 40 mm) with a 440 × 30 × 5 mm mounting strip and MME26A (270 × 150 × 33 mm) with a 405 × 40 × 5 mm mounting strip. Both models feature a 5 mm thick steel strip and are supplied individually.

Description
Ask a Question

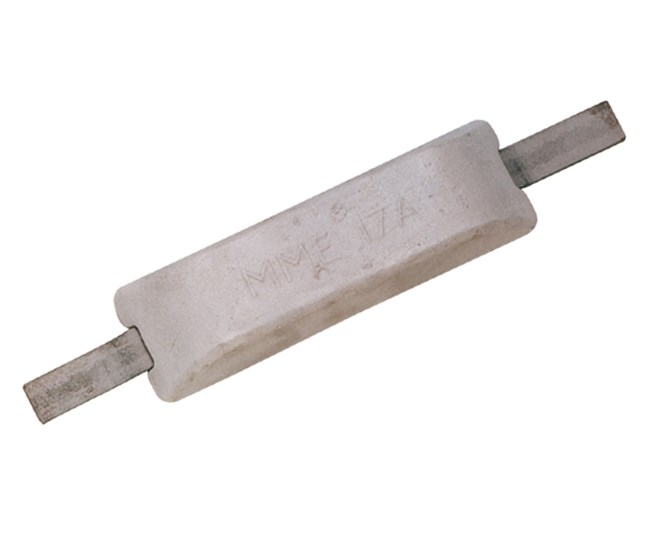

MME Aluminium Rectangular Weld-On Hull and Rudder Anodes with Steel Strip – MME17A / MME26A

The MME Aluminium Rectangular Weld-On Anode is designed to provide sacrificial corrosion protection for steel boat hulls and rudders. It combines a rectangular aluminium anode body with an extended steel mounting strip intended for welded installation on steel hulls.

The range includes two models: MME17A and MME26A. They differ in body dimensions and mounting strip specifications, allowing selection according to the required installation arrangement.

Key Features

Brand: MME
Product Type: Sacrificial hull and rudder anode
Anode Material: Aluminium
Mounting Strip Material: Steel
Shape: Rectangular
Installation Type: Weld-on
Suitable Hull Material: Steel
Application: Boat hulls and rudders
Function: Sacrificial corrosion protection
Available Models: MME17A and MME26A
Body Length: 270 or 290 mm
Mounting Strip Length: 405 or 440 mm
Mounting Strip Thickness: 5 mm
Sales Unit: 1 piece

Technical Specifications and Available Models

The MME17A and MME26A models have different aluminium body dimensions and steel mounting strip specifications. Dimensions are provided in millimetres.

Model	Technical Specifications
MME17A	Product Number: 1739 Body Length: 290 mm Body Width: 100 mm Body Height: 40 mm Strip Length (L): 440 mm Strip Width (B): 30 mm Strip Thickness (D): 5 mm
MME26A	Product Number: 1740 Body Length: 270 mm Body Width: 150 mm Body Height: 33 mm Strip Length (L): 405 mm Strip Width (B): 40 mm Strip Thickness (D): 5 mm

Construction and Steel Mounting Strip

Both models feature a rectangular aluminium anode body with an extended steel mounting strip. The steel strip provides the mounting arrangement for welded installation on steel hulls.

MME17A: Steel mounting strip measuring 440 × 30 × 5 mm.
MME26A: Steel mounting strip measuring 405 × 40 × 5 mm.

The mounting strip thickness is 5 mm for both models. The MME17A has a longer strip measuring 440 mm, while the MME26A has a shorter but wider strip measuring 405 × 40 mm.

Dimensions and Model Selection

The range includes two models with different body dimensions. Body dimensions are specified as length × width × height.

MME17A (1739): Rectangular aluminium anode measuring 290 × 100 × 40 mm with a steel mounting strip measuring 440 × 30 × 5 mm.
MME26A (1740): Rectangular aluminium anode measuring 270 × 150 × 33 mm with a steel mounting strip measuring 405 × 40 × 5 mm.

The MME17A has a longer and narrower anode body, while the MME26A has a shorter and wider body. The mounting strip dimensions also differ between the two models.

When selecting an anode, compare the body dimensions and steel mounting strip specifications with the required installation dimensions.

Installation and Application

The MME17A and MME26A anodes are intended for installation on steel boat hulls and rudders. The extended steel mounting strip is designed for welded attachment to the vessel.

Hull Material: Steel.
Anode Material: Aluminium.
Mounting Strip Material: Steel.
Installation Type: Weld-on.
Application: Hull and rudder corrosion protection.

Corrosion Protection

The aluminium anode functions as a sacrificial component, corroding preferentially to help protect metal components of the vessel against corrosion.

Both models are designed for steel hull and rudder applications. Their different body dimensions and mounting strip configurations provide two options for installation on steel vessels.

Product Identification

Model	Product Number / EAN
MME17A	Product Number: 1739 EAN: 8720193040882
MME26A	Product Number: 1740 EAN: 8720193040899

Sales Unit: 1 aluminium anode with steel mounting strip.
