ID
1400362
$ 37.49
1-2 weeks delivery time
Size:
- Ø68x56x56
- Ø84x56x53
E. Polipodio zinc anodes for Vetus applications, available in two configurations with stainless steel inserts. The OG026 / F-BC-1 version measures Ø68 mm in outside diameter, 56 mm in dimension B and 56 mm in overall height. The larger OG061 / F-BC-10 version measures Ø84 mm in outside diameter, 56 mm in dimension B and 53 mm in overall height. Both versions are manufactured from zinc (ZN) and are listed in the Trem catalogue as L8125514 and L8125515.
- Description
- Ask a Question
-
E. Polipodio Vetus Zinc Anodes with Stainless Steel Insert – Ø68 & Ø84 mm
The E. Polipodio Vetus Zinc Anodes are available in two dimensional configurations for Vetus applications. Both versions are manufactured from zinc (ZN), and the catalogue drawing specifies a stainless steel insert.
The range includes the compact OG026 / F-BC-1 model with an outside diameter of Ø68 mm and the larger OG061 / F-BC-10 model with an outside diameter of Ø84 mm.
Key Features
- Brand: E. Polipodio
- Application: Vetus
- Material: Zinc (ZN)
- Insert: Stainless steel (INOX)
- Available Outside Diameters: Ø68 mm and Ø84 mm
- Dimension B: 56 mm
- Height Range: 53–56 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Model A B H Material OG026 L8125514 F-BC-1 Ø68 mm 56 mm 56 mm Zinc OG061 L8125515 F-BC-10 Ø84 mm 56 mm 53 mm Zinc
E. Polipodio OG026 / Trem L8125514
- Model: F-BC-1
- Outside Diameter A: Ø68 mm
- Dimension B: 56 mm
- Overall Height H: 56 mm
- Material: Zinc (ZN)
- Insert: Stainless steel
- EAN: 8024827646311
E. Polipodio OG061 / Trem L8125515
- Model: F-BC-10
- Outside Diameter A: Ø84 mm
- Dimension B: 56 mm
- Overall Height H: 53 mm
- Material: Zinc (ZN)
- Insert: Stainless steel
- EAN: 8024827646328

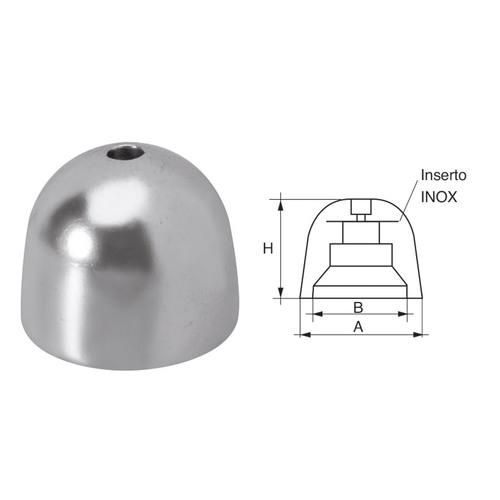

Dimensions for Model Selection
- A: Outside diameter
- B: Internal/base dimension according to the catalogue drawing
- H: Overall anode height
Select the required Vetus anode according to dimensions A, B and H and the corresponding E. Polipodio or Trem reference.
-
