ID
1401293
$ 13.51
1-2 weeks delivery time
Shaft Diameter:
- 19
- 22
- 25
- 25.4
- 28
- 28.6
- 30
- 31.8
- 34
- 35
- 38
- 40
- 1-3/4"
- 45
- 50
- 50.8
- 60
- 65
Weight, kg:
- 1100 g
- 630 g
- 623 g
- 583 g
- 602 g
- 593 g
- 587 g
- 538 g
- 651 g
- 644 g
- 600 g
- 1000 g
- 880 g
- 1068 g
- 1050 g
- 995 g
- 1710 g
- 1565 g
Item:
- Ø62x60 Bulk
- Ø62x60 Packaged
- Ø65x60 Bulk
- Ø65x60 Packaged
- Ø82x83 Packaged
- Ø82x83 Bulk
- Ø100x100 4 Holes Bulk
Crosseven zinc shaft clamp sacrificial anodes for marine propeller shafts, available for shaft diameters from Ø19 to Ø65 mm as well as 1-3/4" shafts. Depending on the version, external diameter ranges from Ø62 to Ø100 mm, height from 60 to 100 mm and weight from 0.538 to 1.71 kg. Most models use two mounting holes, while the Ø60 and Ø65 mm versions use four. Selected shaft sizes are available in both packaged and bulk configurations. The anodes are injection-moulded from zinc alloy in accordance with MIL-A-18001K and are supplied with A2 stainless-steel mounting hardware.
- Description
- Ask a Question
-

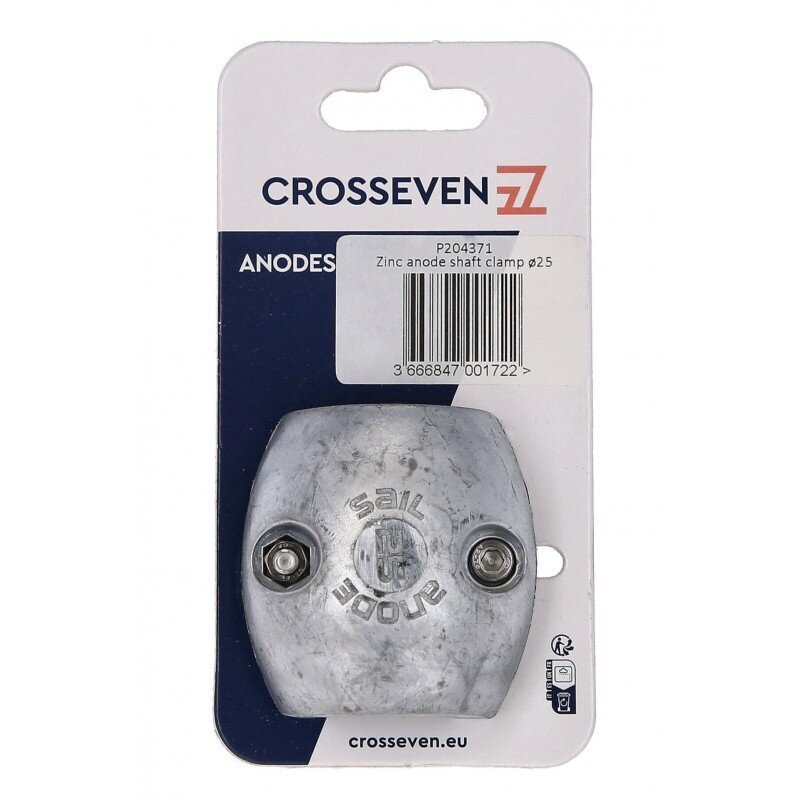

Crosseven Zinc Shaft Clamp Anodes – Shaft Ø19–65 mm & 1-3/4"
The Crosseven zinc shaft clamp anodes are sacrificial anodes designed for installation around marine propeller shafts. The range covers metric shaft diameters from Ø19 to Ø65 mm together with a 1-3/4" imperial version.
The anodes are injection-moulded from zinc alloy in accordance with MIL-A-18001K. Depending on the shaft diameter, the external diameter ranges from Ø62 to Ø100 mm, height from 60 to 100 mm and weight from 0.538 to 1.71 kg. Selected sizes are supplied either packaged or in bulk.
The majority of the range uses 2 mounting holes. The larger Ø60 and Ø65 mm models use 4 mounting holes. Crosseven shaft clamp anodes are supplied with A2 stainless-steel mounting hardware.
Available Models
Crosseven Code Shaft Diameter External Diameter Height Holes Packaging Weight P205409 19 mm 62 mm 60 mm 2 Packaged 0.630 kg P204368 19 mm 62 mm 60 mm 2 Bulk 0.630 kg P204369 22 mm 62 mm 60 mm 2 Packaged 0.623 kg P204370 22 mm 62 mm 60 mm 2 Bulk 0.623 kg P204371 25 mm 62 mm 60 mm 2 Packaged 0.583 kg P204372 25 mm 62 mm 60 mm 2 Bulk 0.583 kg P205410 25.4 mm 62 mm 60 mm 2 Packaged 0.602 kg P204373 25.4 mm 62 mm 60 mm 2 Bulk 0.602 kg P205411 28 mm 62 mm 60 mm 2 Packaged 0.593 kg P204374 28 mm 62 mm 60 mm 2 Bulk 0.593 kg P205412 28.6 mm 62 mm 60 mm 2 Packaged 0.587 kg P204375 28.6 mm 62 mm 60 mm 2 Bulk 0.587 kg P204376 30 mm 62 mm 60 mm 2 Packaged 0.538 kg P204377 30 mm 62 mm 60 mm 2 Bulk 0.538 kg P205413 31.8 mm 65 mm 60 mm 2 Packaged 0.651 kg P204378 31.8 mm 65 mm 60 mm 2 Bulk 0.651 kg P205414 34 mm 65 mm 60 mm 2 Packaged 0.644 kg P204379 34 mm 65 mm 60 mm 2 Bulk 0.644 kg P204380 35 mm 65 mm 60 mm 2 Packaged 0.60 kg P204381 35 mm 65 mm 60 mm 2 Bulk 1.00 kg P204382 38 mm 65 mm 60 mm 2 Packaged 0.88 kg P204383 38 mm 65 mm 60 mm 2 Bulk 0.88 kg P204384 40 mm 82 mm 83 mm 2 Packaged 1.10 kg P204385 40 mm 82 mm 83 mm 2 Bulk 1.10 kg P205415 45 mm 82 mm 83 mm 2 Packaged 1.05 kg P204386 45 mm 82 mm 83 mm 2 Bulk 1.05 kg P204387 50 mm 82 mm 83 mm 2 Packaged 1.00 kg P204388 50 mm 82 mm 83 mm 2 Bulk 1.00 kg P204389 50.8 mm 82 mm 83 mm 2 Bulk 0.995 kg P204390 60 mm 100 mm 100 mm 4 Bulk 1.71 kg P204391 65 mm 100 mm 100 mm 4 Bulk 1.565 kg P204366 1-3/4" 82 mm 83 mm 2 Packaged 1.068 kg P204367 1-3/4" 82 mm 83 mm 2 Bulk 1.068 kg
Key Features
- Brand: Crosseven
- Type: Shaft clamp sacrificial anode
- Material: Zinc alloy
- Manufacturing: Injection moulded
- Standard: MIL-A-18001K
- Shaft Range: Ø19–65 mm and 1-3/4"
- External Diameter Range: Ø62–100 mm
- Height Range: 60–100 mm
- Mounting: 2 or 4 holes depending on size
- Hardware: A2 stainless-steel screws and nuts
- Supply: Packaged or bulk depending on model
Select the required version according to shaft diameter, anode dimensions and packaging type.
-
