ID
1401222
$ 16.83
1-2 weeks delivery time
Shaft Diameter:
- 28
- 1 1/8"
- 50
- 2"
- 2 1/4"
- 2 1/2"
- 70
Size:
- Ø56x56
- Ø98x98
- Ø81x83
- Ø122x108
Plastimo zinc shaft anodes for marine propeller shafts, available for metric and imperial shaft diameters from Ø28 to Ø70 mm and from 1 1/8" to 2 1/2". The range includes outside diameters from Ø56 to Ø122 mm and heights from 56 to 108 mm. Available models include Plastimo 38229, 38240, 405434, 405436, 405438, 420815 and 420870, with OEM references AN006 SP, AN019 SP, AN018, AN020, AN023, AN007 and AN025 respectively.
- Description
- Ask a Question
-

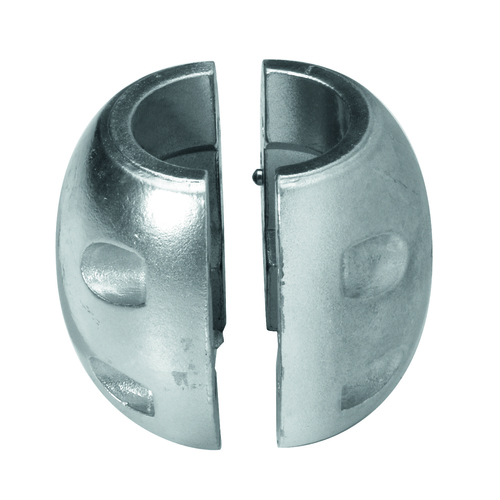

Plastimo Zinc Shaft Anodes – Shaft Ø28–70 mm / 1 1/8"–2 1/2"
The Plastimo zinc shaft anodes are designed for installation around marine propeller shafts. The range includes both metric and imperial shaft sizes, allowing the correct anode to be selected according to shaft diameter and overall anode dimensions.
The available variants cover shaft diameters from 28 to 70 mm, together with imperial sizes from 1 1/8" to 2 1/2". Depending on the model, the outside diameter ranges from 56 to 122 mm and the overall height from 56 to 108 mm.
Available Models
Plastimo Code OEM P/N Shaft Diameter ØA Outside Diameter ØB Height 38229 AN006 SP 28 mm 56 mm 56 mm 38240 AN019 SP 50 mm 98 mm 98 mm 405434 AN018 2" (50.8 mm) 81 mm 83 mm 405436 AN020 2 1/4" (57.2 mm) 98 mm 98 mm 405438 AN023 2 1/2" (63.5 mm) 122 mm 108 mm 420815 AN007 1 1/8" (28.5 mm) 56 mm 56 mm 420870 AN025 70 mm 122 mm 108 mm
Key Features
- Brand: Plastimo
- Material: Zinc
- Type: Shaft sacrificial anode
- Metric Shaft Sizes: Ø28, Ø50 and Ø70 mm
- Imperial Shaft Sizes: 1 1/8", 2", 2 1/4" and 2 1/2"
- Outside Diameter Range: Ø56–122 mm
- Height Range: 56–108 mm
Select the correct version according to the propeller shaft diameter and verify the outside diameter and height for the available installation space.
-
