Crosseven conical zinc shaft end sacrificial anodes for marine propulsion shafts, available for shaft diameters from Ø22–25 mm up to Ø100 mm. The range includes packaged and bulk versions, with heights from 39 to 98 mm and weights from 0.14 to 2.22 kg. The anodes are manufactured from zinc alloy by injection moulding in accordance with MIL-A-18001K and are intended for sacrificial corrosion protection of marine shaft installations. Plastimo recommends replacement at least once per year.
- Description
- Ask a Question
-

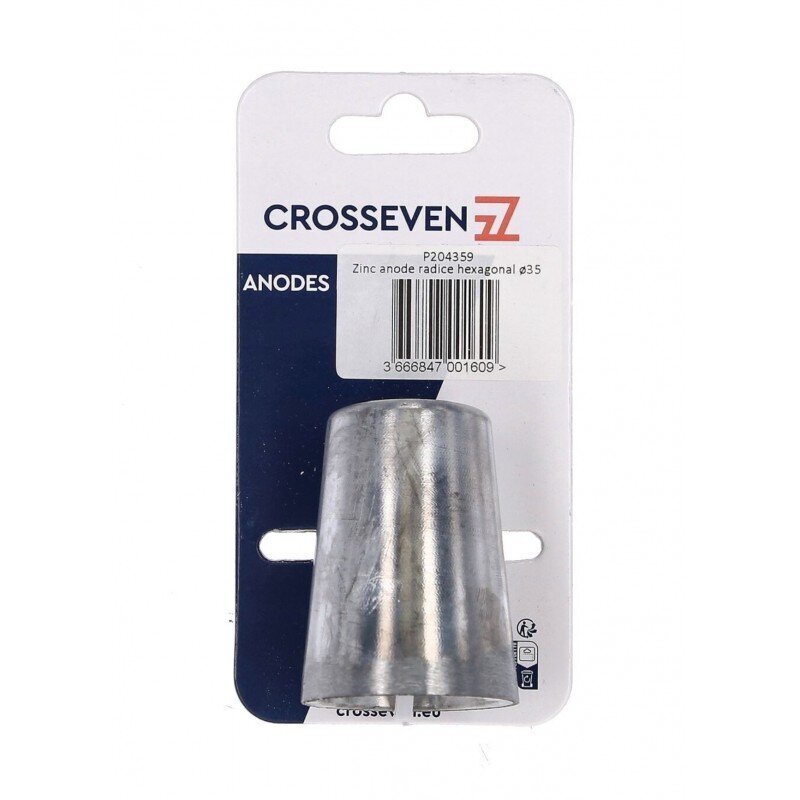

Crosseven Zinc Conical Shaft End Anodes – Shaft Ø22–100 mm
The Crosseven zinc conical shaft end anodes are sacrificial anodes designed for installation at the end of marine propulsion shafts. The series covers shaft diameters from Ø22–25 mm to Ø100 mm and includes both packaged and bulk-supplied versions.
The anodes are manufactured from zinc alloy by injection moulding in accordance with MIL-A-18001K. Depending on the shaft size, the anode height ranges from 39 to 98 mm and the weight from 0.14 to 2.22 kg. Plastimo recommends replacing the anode at least once per year.
Available Models
Crosseven Code Shaft Diameter Height Packaging Weight P204342 22–25 mm 39 mm Packaged 0.14 kg P204343 22–25 mm 39 mm Bulk 0.14 kg P204344 30 mm 53 mm Packaged 0.28 kg P204345 30 mm 53 mm Bulk 0.28 kg P204346 35 mm 62 mm Packaged 0.39 kg P204347 35 mm 62 mm Bulk 0.39 kg P204348 40 mm 68 mm Packaged 0.51 kg P204349 40 mm 68 mm Bulk 0.51 kg P204350 45 mm 76 mm Packaged 0.83 kg P204351 45 mm 76 mm Bulk 0.83 kg P204352 50 mm 84 mm Packaged 1.14 kg P204353 50 mm 84 mm Bulk 1.14 kg P204354 55 mm 86 mm Bulk 1.11 kg P204355 60 mm 98 mm Bulk 1.83 kg P204356 100 mm 96 mm Bulk 2.22 kg
Key Features
- Brand: Crosseven
- Type: Conical shaft end sacrificial anode
- Material: Zinc alloy
- Manufacturing: Injection moulded
- Standard: MIL-A-18001K
- Shaft Diameter Range: Ø22–25 to Ø100 mm
- Height Range: 39–98 mm
- Weight Range: 0.14–2.22 kg
- Supply Options: Packaged or bulk depending on model
Select the required version according to the shaft diameter, anode height and packaging type.
-
