ID
1401253
$ 120.90
1-2 weeks delivery time
Size:
- Ø140x35
- Ø135x30 / Hole Ø14
- Ø136x55
- Ø136x55 / W130
- Ø140x40 / Hole Ø13
Item:
- 2500 g
- 3400 g
- 3200 g
- 4500 g
Plastimo zinc sacrificial anodes for transom applications, available in five configurations weighing from 2.5 to 4.5 kg. The range includes Plastimo 420909, 420907, 420908, 420902 and 420911 with catalogue diameters from Ø135 to Ø140 mm and different heights and mounting configurations. OEM references include NC012, NC005 + BOUCHON COUP, NC004 and NC014. The zinc material is specified by Plastimo as compliant with MIL-A-18001K.
- Description
- Ask a Question
-
Plastimo Zinc Transom Anodes – Ø135–140 mm, 2.5–4.5 kg

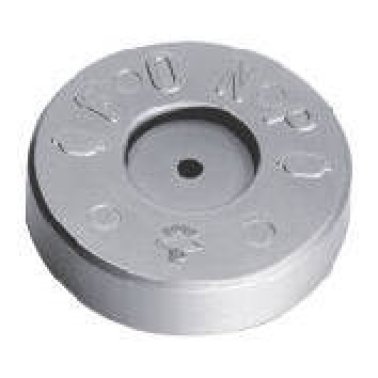

The Plastimo zinc transom anodes are sacrificial anodes designed for installation on marine transom assemblies. The range includes five configurations with different diameters, heights, mounting arrangements and weights.
The zinc material is specified by Plastimo as compliant with MIL-A-18001K. Available versions range from 2.5 to 4.5 kg.
Available Models
Plastimo Code OEM P/N Diameter Height Width Weight 420909 NC012 135 mm 30 mm 135 mm 2.5 kg 420907 NC005 + BOUCHON COUP 136 mm 55 mm - 4.5 kg 420908 NC004 136 mm 55 mm 130 mm 4.5 kg 420902 NC014 140 mm 40 mm 140 mm 3.2 kg 420911 - 140 mm 35 mm - 3.4 kg
Additional Mounting Details
- 420909: Ø14 mm mounting hole according to the supplied product data
- 420902: Ø13 mm mounting hole according to the supplied product data
- 420908: Supplied configuration includes a joint
Key Features
- Brand: Plastimo
- Material: Zinc
- Zinc Specification: MIL-A-18001K compliant
- Application: Transom
- Diameter Range: Ø135–140 mm
- Weight Range: 2.5–4.5 kg
Select the appropriate version according to the required dimensions, mounting configuration and OEM reference.
-
