ID
1401278
$ 9.29
1-2 weeks delivery time
Shaft Diameter:
- 22-25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
Weight, kg:
- 120 g
- 250 g
- 350 g
- 460 g
- 775 g
- 950 g
- 1020 g
- 1660 g
Item:
- H39 Packaged
- H39 Bulk
- H53 Packaged
- H53 Bulk
- H62 Packaged
- H62 Bulk
- H76 Packaged
- H76 Bulk
- H84 Packaged
- H84 Bulk
- H98 Bulk
- H67 Bulk
- H67 Packaged
- H87 Bulk
Crosseven hexagonal zinc shaft end sacrificial anodes for marine propulsion shafts, available for shaft diameters from Ø22–25 mm to Ø60 mm. The range includes bulk and packaged versions, with external diameters from Ø33 to Ø82 mm, heights from 39 to 98 mm and weights from 0.12 to 1.66 kg. The anodes are injection-moulded from zinc alloy in accordance with MIL-A-18001K for sacrificial corrosion protection of marine shaft installations.
- Description
- Ask a Question
-

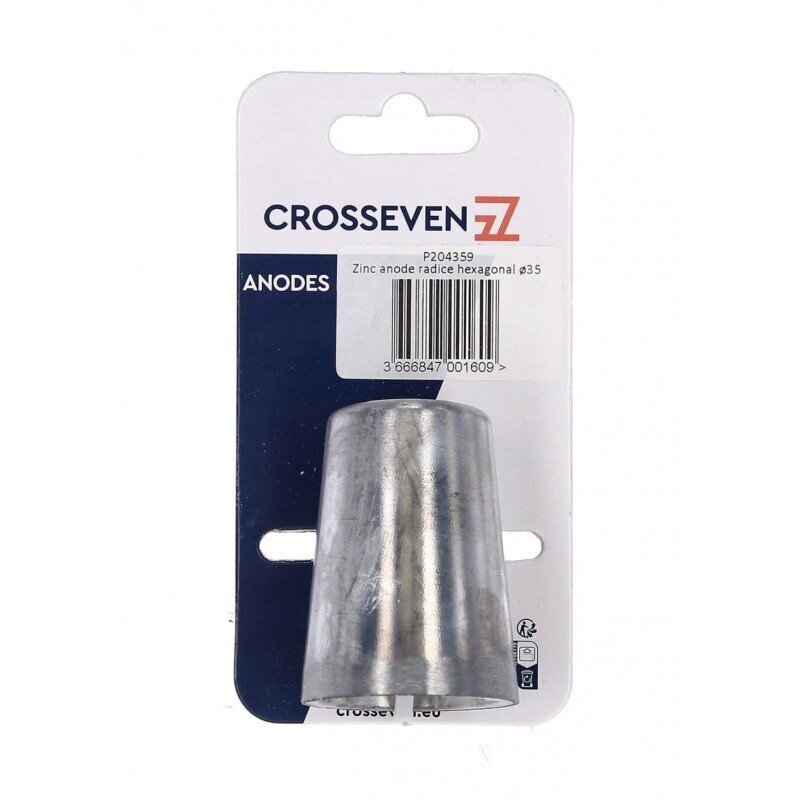

Crosseven Zinc Hexagonal Shaft End Anodes – Shaft Ø22–60 mm
The Crosseven zinc hexagonal shaft end anodes are sacrificial anodes designed for marine propulsion shaft installations. The series covers shaft diameters from Ø22–25 mm to Ø60 mm and is available in both bulk and packaged configurations depending on the size.
The anodes are manufactured from zinc alloy by injection moulding in accordance with MIL-A-18001K. Depending on the model, the external diameter ranges from Ø33 to Ø82 mm, the height from 39 to 98 mm and the weight from 0.12 to 1.66 kg.
Available Models
Crosseven Code Shaft Diameter External Diameter Internal Diameter Height Packaging Weight P204357 22–25 mm 33 mm 22 mm 39 mm Bulk 0.120 kg P205404 22–25 mm 33 mm 22 mm 39 mm Packaged 0.120 kg P204358 30 mm 41 mm 27 mm 53 mm Bulk 0.250 kg P205405 30 mm 41 mm 27 mm 53 mm Packaged 0.250 kg P204359 35 mm 46 mm 32 mm 62 mm Packaged 0.35 kg P204360 35 mm 46 mm 32 mm 62 mm Bulk 0.35 kg P204361 40 mm 51 mm 36 mm 67 mm Bulk 0.46 kg P205406 40 mm 51 mm 36 mm 67 mm Packaged 0.46 kg P204362 45 mm 61 mm 41 mm 76 mm Bulk 0.775 kg P205407 45 mm 61 mm 41 mm 76 mm Packaged 0.775 kg P204363 50 mm 72 mm 46 mm 84 mm Bulk 0.95 kg P205408 50 mm 72 mm 46 mm 84 mm Packaged 0.95 kg P204364 55 mm 74 mm 50 mm 87 mm Bulk 1.02 kg P204365 60 mm 82 mm 55 mm 98 mm Bulk 1.66 kg
Key Features
- Brand: Crosseven
- Type: Hexagonal shaft end sacrificial anode
- Material: Zinc alloy
- Manufacturing: Injection moulded
- Standard: MIL-A-18001K
- Shaft Diameter Range: Ø22–25 to Ø60 mm
- External Diameter Range: Ø33–82 mm
- Height Range: 39–98 mm
- Weight Range: 0.12–1.66 kg
- Supply Options: Bulk or packaged depending on model
Select the required version according to shaft diameter, anode dimensions and packaging type.
-
