ID
1401233
$ 39.43
1-2 weeks delivery time
Size:
- 150x69x15
- 220x60x30
- 100x40x20
- 150x45x20
- 170x34x20
- 210x70x25
Item:
- 550 g
- 2000 g
- 600 g
- 900 g
- 2800 g
- 260 g
Plastimo trim tab sacrificial anodes for Riva and Saipem series applications, available in six configurations from 0.26 to 2.8 kg. The range includes Plastimo 38265, 420140, 420701, 420702, 420708 and 476510 with lengths from 100 to 220 mm, widths from 34 to 70 mm and heights from 15 to 30 mm. Catalogue drilling diameters range from 5 to 18 mm, with fixing centres from 50 to 160 mm depending on the model.
- Description
- Ask a Question
-

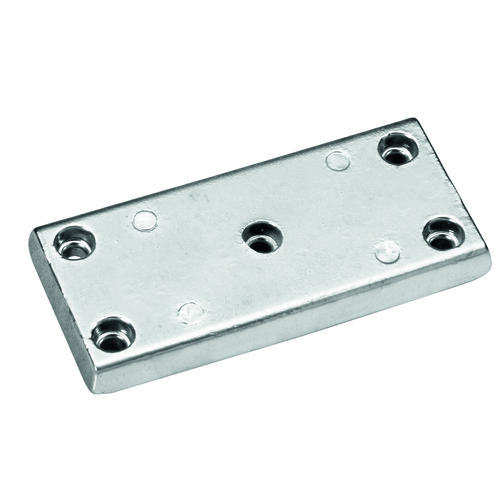

Plastimo Trim Tab Anodes for Riva / Saipem Series – 0.26–2.8 kg
The Plastimo trim tab anodes are available in several configurations for Riva and Saipem series applications. The variants differ in overall dimensions, drilling diameter, fixing centres and anode weight.
The range covers compact 0.260 kg anodes through to larger 2.8 kg versions. Select the appropriate model according to the required dimensions, mounting-hole arrangement and corresponding OEM reference.
Available Models
Plastimo Code Series OEM P/N Dimensions Drilling Diameter Fixing Centres Weight 38265 F NC033 SP 150x69x15 mm 7 mm 120x40 mm 0.9 kg 420140 Riva NC015 220x60x30 mm 9 mm 160 mm 2.8 kg 420701 A - 100x40x20 mm 5 mm 50 mm 0.260 kg 420702 B NC031 150x45x20 mm 7 mm 52 mm 0.55 kg 420708 Saipem NC018 170x34x20 mm 6 mm 100 mm 0.6 kg 476510 E NC008 210x70x25 mm 18 mm 80 mm 2.0 kg
Key Features
- Brand: Plastimo
- Type: Trim tab sacrificial anode
- Series: Riva / Saipem and related A, B, E and F variants
- Length Range: 100–220 mm
- Width Range: 34–70 mm
- Height Range: 15–30 mm
- Drilling Diameter: 5–18 mm
- Weight Range: 0.260–2.8 kg
Select the correct version according to overall dimensions, drilling diameter, fixing centres and OEM reference.
-
