E. Polipodio ZX010B zinc anode for hull and transom applications, model FX-5B, weighing 4.00 kg. The anode measures 325 mm in length and 80 mm in width, with two mounting holes positioned 200 mm centre-to-centre. The catalogue drawing specifies Ø16x26 mm mounting-hole dimensions. Manufactured from zinc (ZN) and cross-referenced in the Trem catalogue as L8120420.
- Description
- Ask a Question
-
E. Polipodio ZX010B Zinc Anode for Hull & Transoms – 325x80 mm, 4.0 kg
The E. Polipodio ZX010B is a zinc anode designed for hull and transom applications. It is identified as model FX-5B and is cross-referenced in the Trem catalogue as L8120420.

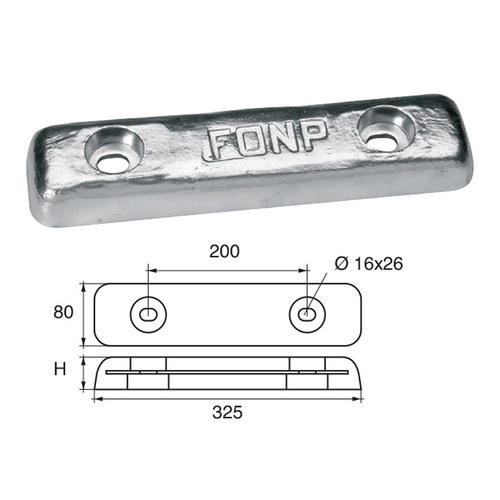

The anode measures 325 mm in overall length and 80 mm in width, with a weight of 4.00 kg. It features two mounting points positioned 200 mm centre-to-centre. According to the catalogue drawing, the mounting-hole dimensions are Ø16x26 mm.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: ZX010B
- Trem Reference: L8120420
- Model: FX-5B
- Application: Hull & transoms
- Material: Zinc (ZN)
- Length: 325 mm
- Width: 80 mm
- Weight: 4.00 kg / 4000 g
- Mounting Points: 2
- Hole Centre Spacing: 200 mm
- Mounting-Hole Dimensions: Ø16x26 mm
- EAN: 8024827644560
Dimensions for Selection
- Overall Length: 325 mm
- Width: 80 mm
- Hole Spacing: 200 mm centre-to-centre
- Mounting-Hole Dimensions: Ø16x26 mm
- Weight: 4.00 kg
For replacement selection, compare the overall dimensions, mounting-hole configuration, 200 mm centre spacing and weight with the existing anode.
-
