ID
1400435
$ 110.11
1-2 weeks delivery time
-
+
E. Polipodio ZX011 zinc anode for hull and transom applications, model FX-4, measuring 220 x 110 x 30 mm and weighing 4.00 kg. The anode features two elongated 13x20 mm mounting slots positioned 130 mm centre-to-centre and includes an insert according to the catalogue drawing. Manufactured from zinc (ZN) and cross-referenced in the Trem catalogue as L8120413.
- Description
- Ask a Question
-
E. Polipodio ZX011 Zinc Anode for Hull & Transoms – 220x110x30 mm, 4.0 kg
The E. Polipodio ZX011 is a zinc anode designed for hull and transom applications. It is identified as model FX-4 and is cross-referenced in the Trem catalogue as L8120413.

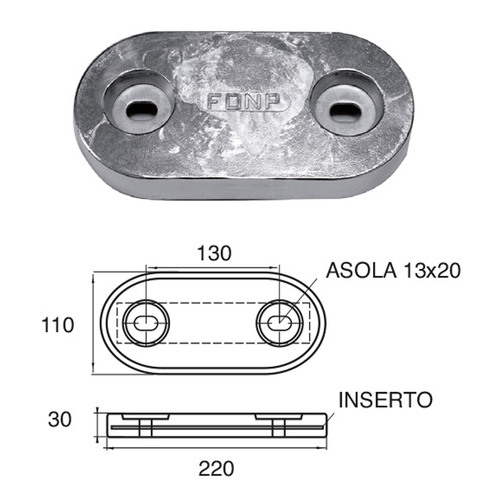

The anode measures 220 x 110 x 30 mm and weighs 4.00 kg. It features two elongated mounting slots positioned 130 mm centre-to-centre. According to the catalogue drawing, the slot dimensions are 13x20 mm and the anode includes an insert.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: ZX011
- Trem Reference: L8120413
- Model: FX-4
- Application: Hull & transoms
- Material: Zinc (ZN)
- Length: 220 mm
- Width: 110 mm
- Height: 30 mm
- Weight: 4.00 kg / 4000 g
- Mounting Slots: 2
- Slot Centre Spacing: 130 mm
- Mounting Slot Size: 13x20 mm
- Insert: Yes, shown in catalogue drawing
- EAN: 8024827645284
Dimensions for Selection
- Overall Size: 220 x 110 x 30 mm
- Slot Spacing: 130 mm centre-to-centre
- Mounting Slot Size: 13x20 mm
- Weight: 4.00 kg
For replacement selection, compare the overall dimensions, mounting-slot dimensions, 130 mm centre spacing and weight with the existing anode.
-
