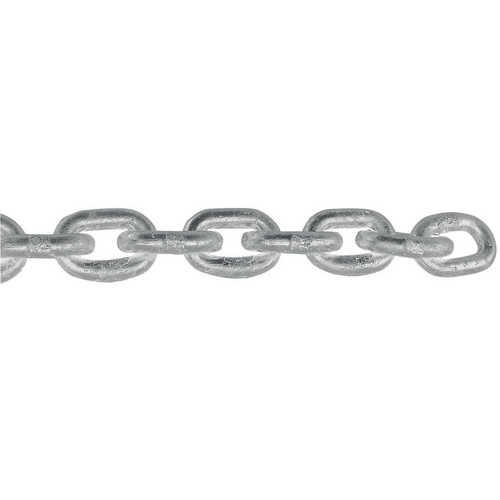

Plastimo Grade 40 Calibrated Short-Link Anchor Chain Galvanized (in set)

ID 1348301

$ 83.54

1-2 weeks delivery time

Diameter, mm:

Length, m:

Plastimo Grade 40 Calibrated Short-Link Anchor Chains are hot-dip galvanized according to EN ISO 1461 (minimum 58 micron zinc coating) and designed for windlass compatibility with regular links fitting most gypsies. The range covers diameters from Ø6 mm to Ø16 mm and lengths from 8 m to 100 m. Depending on model, break loads range from 1630 kg up to 16400 kg and Safe Working Loads (SWL) from 400 kg up to 3150 kg. Selected models are supplied in plastic drums, while references 16496, 16498 and 54166 are delivered in bags.

Description
Ask a Question

Plastimo Grade 40 Calibrated Short-Link Anchor Chain – Galvanized, Ø6–Ø16 mm

Plastimo Grade 40 calibrated short-link anchor chains are engineered for marine anchoring and mooring applications. The entire range is hot-dip galvanized in accordance with EN ISO 1461, ensuring a minimum 58 micron zinc coating thickness. Chains undergo regular testing in accelerated seawater environments to maintain consistent galvanization quality and long-term corrosion resistance.

General Features

Grade: 40
Calibrated short-link chain
Galvanized according to EN ISO 1461 (min. 58 microns)
Suitable for use with windlass – regular links fit most gypsies
Standards: EN24565, ISO 4565 (model dependent)
Packaging: Plastic drum (except refs. 16496, 16498, 54166 – delivered in bag)

Available Sizes

Diameter	Available Lengths
Ø 6 mm	8 m / 100 m
Ø 7 mm	100 m
Ø 8 mm	10 m / 30 m / 60 m / 100 m
Ø 10 mm	15 m / 60 m / 100 m
Ø 12 mm	50 m / 100 m
Ø 14 mm	40 m / 100 m
Ø 16 mm	60 m

Technical Data (By Reference)

Reference	Diameter	Length	Break Load	SWL	Weight
16496	6 mm	8 m	1630 kg	400 kg	6 kg
471068	8 mm	30 m	4030 kg	1000 kg	—
54166	10 mm	15 m	5096 kg	1250 kg	35 kg
57148	10 mm	100 m	5096 kg	1250 kg	230 kg
60765	12 mm	100 m	8500 kg	2000 kg	330 kg
60766	14 mm	100 m	10000 kg	2500 kg	440 kg
478501	16 mm	60 m	16400 kg	3150 kg	—

Additional Information

Hot-dip galvanisation engineered with zinc for improved adhesion and extended service life.
Regular seawater testing ensures consistent corrosion resistance.
In marinas exposed to strong galvanic currents, use of mooring anodes (ref. 38266 & 38267) is recommended to protect chain and metallic boat components.
