ID
1382945
$ 430.75
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
Length, m:
- 25
- 50

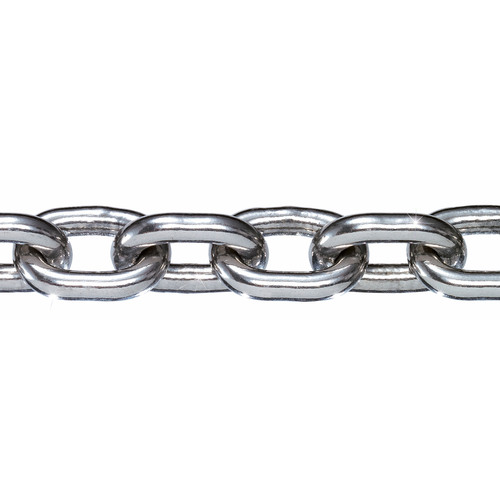

The Trem Calibrated Windlass Chain is manufactured from AISI 316 stainless steel and designed for reliable operation with anchor windlasses. Produced to the DIN 766 ISO standard, the calibrated short-link construction ensures compatibility with windlass gypsies while providing excellent corrosion resistance in marine environments. Available in 6 mm, 8 mm and 10 mm diameters with 25 m or 50 m lengths depending on the selected variant, the chain offers breaking loads from 1,630 kg to 5,000 kg for secure anchoring applications.
- Description
- Ask a Question
-
Trem AISI 316 Stainless Steel Calibrated Windlass Chain DIN 766 ISO – 6-10 mm, 25-50 m
The Trem Calibrated Windlass Chain is manufactured from premium AISI 316 stainless steel for maximum corrosion resistance and long service life in marine environments. Designed specifically for anchor windlasses, the chain features calibrated links manufactured to the DIN 766 ISO standard for reliable compatibility with most windlass gypsies.
Available in several diameters and lengths, this chain is suitable for a wide range of anchoring systems on sailing yachts, motorboats and other recreational vessels. The high-strength stainless steel construction provides dependable performance while maintaining excellent resistance to seawater and harsh weather conditions.
Key Features
- Manufactured from AISI 316 stainless steel
- Calibrated chain for anchor windlasses
- DIN 766 ISO calibrated links
- Excellent corrosion resistance
- Designed for marine anchoring systems
- Available in multiple diameters and lengths
- High breaking load for secure anchoring
Available Variants
Part Number Diameter Length Breaking Load Dimensions Standard N0306025 6 mm 25 m 1,630 kg 18.5 × Ø20 mm DIN 766 ISO N0306050 6 mm 50 m 1,630 kg 18.5 × Ø20 mm DIN 766 ISO N0308025 8 mm 25 m 3,200 kg 24 × Ø27 mm DIN 766 ISO N0308050 8 mm 50 m 3,200 kg 24 × Ø27 mm DIN 766 ISO N0310050 10 mm 50 m 5,000 kg 30 × Ø35 mm ISO
Technical Specifications
Brand Trem Product Type Calibrated Windlass Chain Material AISI 316 Stainless Steel Chain Type Calibrated Short Link Standard DIN 766 ISO Windlass Compatible Yes Diameter Range 6-10 mm Length Options 25 m and 50 m Breaking Load Range 1,630-5,000 kg Applications Marine anchoring systems and anchor windlasses -
